Dual flow PVC gastric tubes

Description

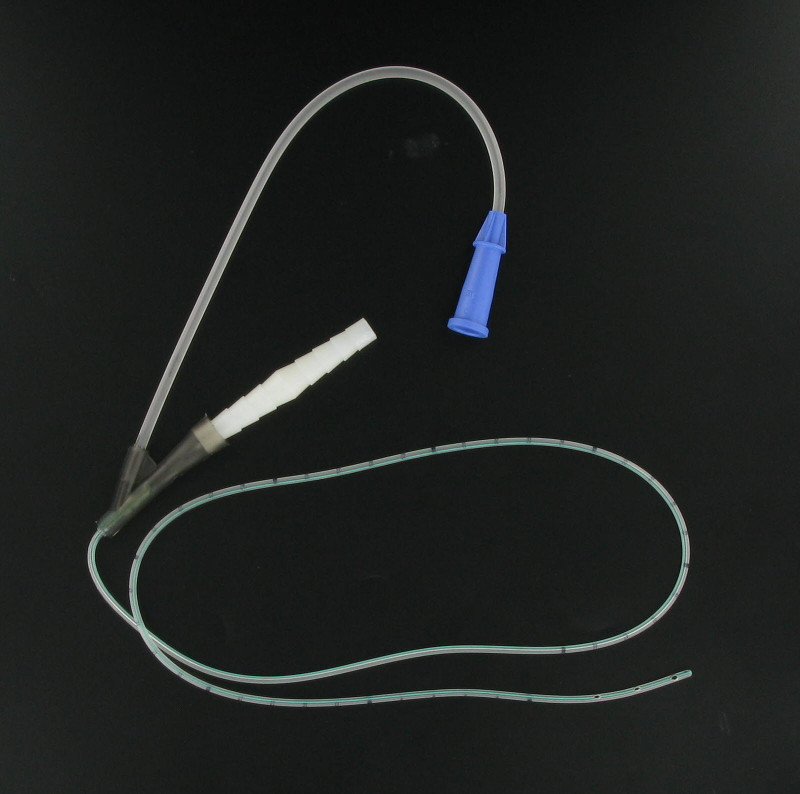

PVC dual lumen sump tube with radiopaque line and closed tip. Centimetric markings from 5 to 45cm (06 and 08Fr), from 10 to 65cm (10Fr), from 10 to 75cm (12 to 21Fr) from the distal tip.

Double lumen sump tube comprising a principal suction lumen with multiple eyes at the distal end and a secondary ventilation channel with a smaller cross section that communicates with the main suction lumen at the distal tip. Both channel lumen are fitted at the proximal end with a flexible female conical mount.

A biconical adaptor is provided at the distal end of the main channel (gray funnel) to increase the choice of possible connections.

The principal gray-coloured channel is connected to a suction apparatus, the secondary lumen with blue-coloured connector is open to air and maintains the suction site at atmospheric pressure.

The tube is used to prevent accumulation of gastric secretions and air, thus allowing decompression of the stomach by continuous aspiration without trauma to the gastric mucosa.

Fr 06 - 08: 6 lateral eyes – Length 60cm

Fr 10: 10 lateral eyes – Length 90cm

Fr 12 - 14 - 16 - 18 - 21: 10 lateral eyes – Length 120cm

This double lumen sump tube is also available in polyurethane, see the corresponding technical file code 1340.
