Epidural anaesthesia: Mini-sets
Mini-set with PERIBAX catheter
Description
Mini-set for epidural anesthesia containing: 1 NRFit Tuohy needle 18G, 80mm long with transparent hub and removable wings with plastic stylet… Read more
Indication
Epidural anaesthesia / analgesia
Product highlights
- Our NRFit miniset are ready to use for epidurals : Pratical and complete, you will find a catheter with a guide, a Tuohy needle, a catheter connector, a 10ml LOR syringe, a filter and a yellow identification label.
- The mini sets are available with 2 needle gauges, 4 catheters as well as the NEXUS connector and its Twist and Click system.
- The NRFit connection prevents connection errors for greater security in loco-regional anesthesia. The NRFit connection is identifiable by it's yellow color.
Description

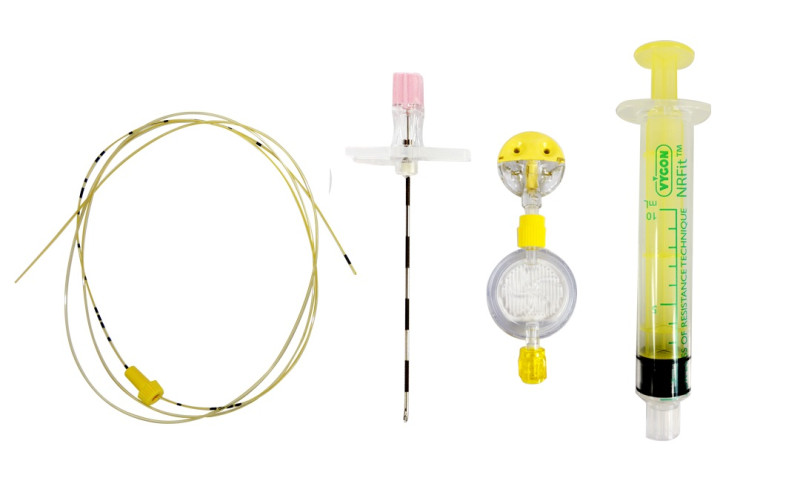

Mini-set for epidural anesthesia containing:- 1 NRFit Tuohy needle 18G, 80mm long with transparent hub and removable wings with plastic stylet. The needle has graduations every centimeter. The transparent hub allows to quickly visualize an accidental reflux of blood or of CSF.
- 1 PEBAX catheter (polyether blockamide), 20G, 90cm long. with closed distal end and 3 lateral eyes with flexible distal tip. The catheter has markings every centimetre from 5 to 20cm and a black mark at the distal end to ensure that the entire catheter has been withdrawn.
- A (yellow) catheter guide which connects onto the Tuohy needle facilitates the insertion of the catheter in the epidural space.
- 1 NRFIT connector type "Nexus" with pre-mounted filter 0.2 μm. Filter surface area: 5.25cm², priming volume: 0.3ml, pressure resistance: 5.2 bar.
- 1 NRFit "low resistance" plastic syringe 10ml,
- 1 Male cap,
- 1 yellow label epidural identification.
References and Features
| Syringe | Needle | Catheter | Packaging | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Code | Volume ml | Gauge G | Length mm | Int. Ø mm | Ext. Ø mm | Length mm | Gauge G | Units/Box | Units/Case |
| 5191.3371A1 | 10 | 18 | 80 | 0.43 | 0.8 | 900 | 20 | 20 | 120 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free Yes
Documentation
-
Catalogue Pain Management
-
Brochure NRFit
-
Instructions for use
