Dialysis catheters
Dualysecath
Description
Double-lumen polyurethane catheter for haemodialysis and veno-venous hemofiltration. Totally radiopaque catheter inserted using the Seldinger… Read more
Indication
Double-lumen polyurethane catheter for haemodialysis and veno-venous haemofiltration.
Description

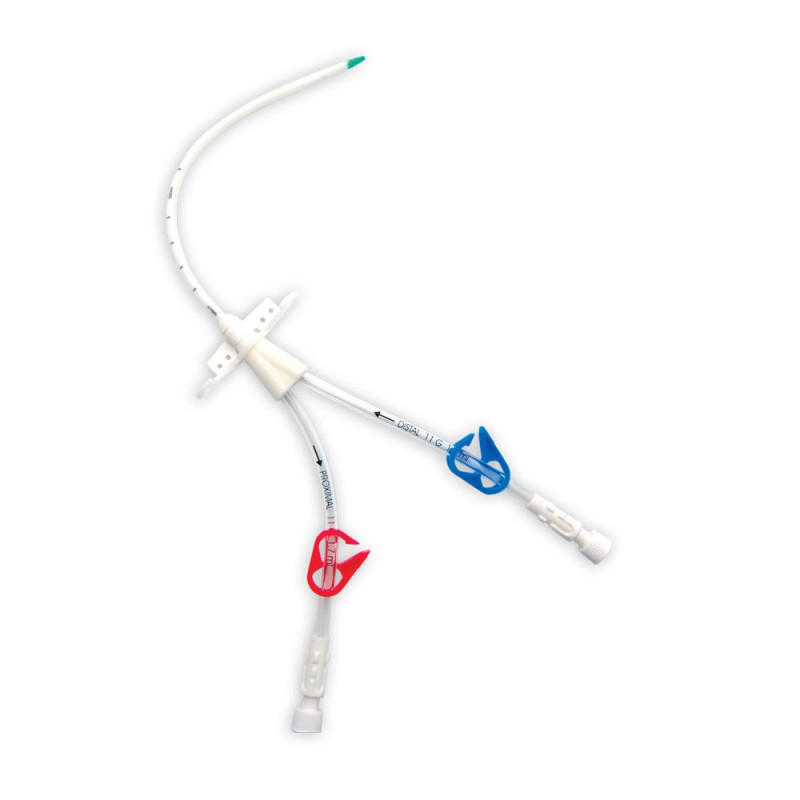

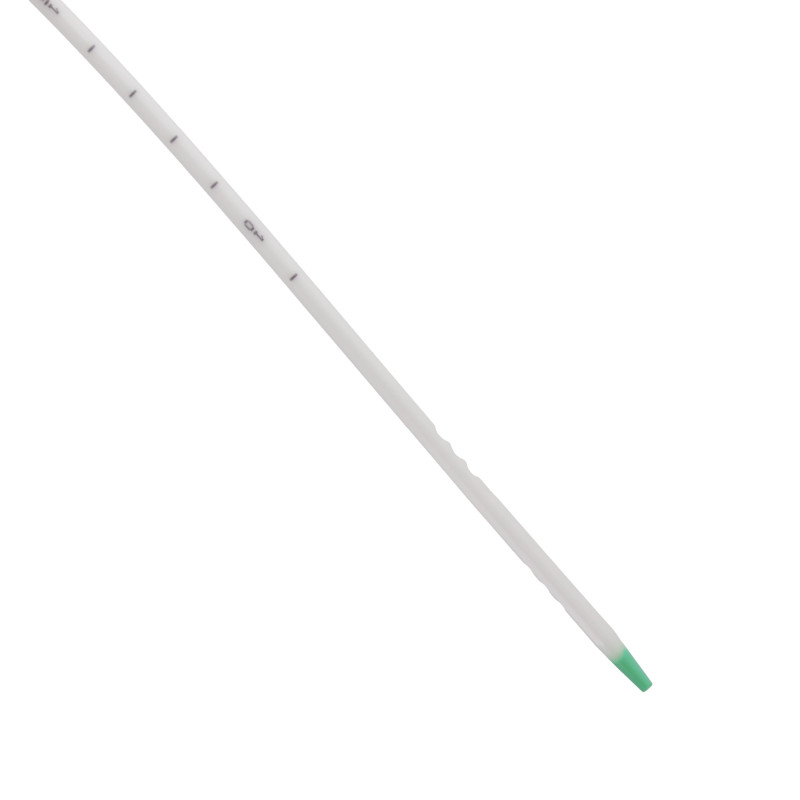

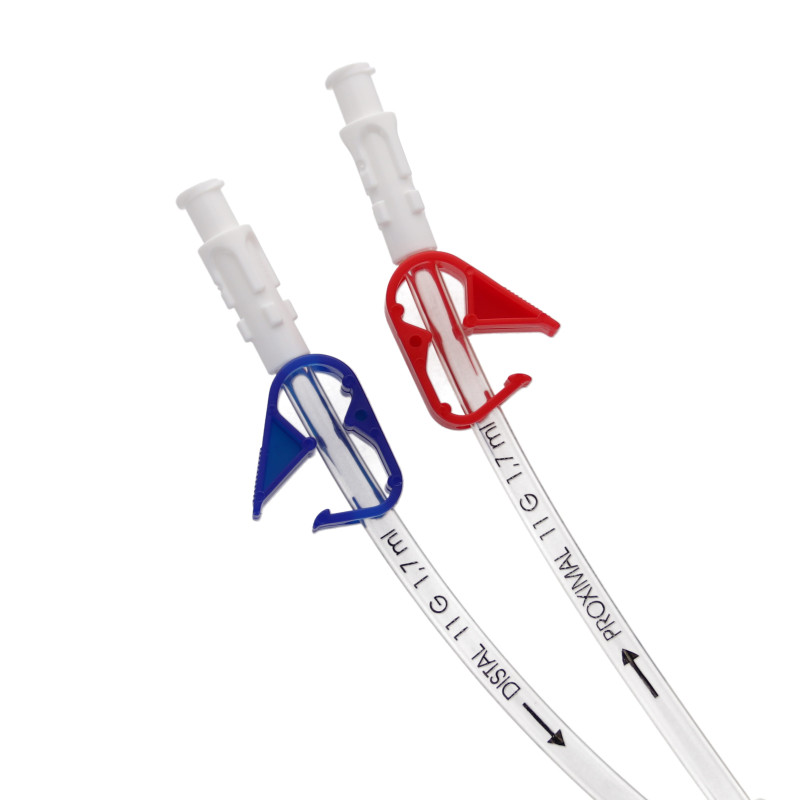

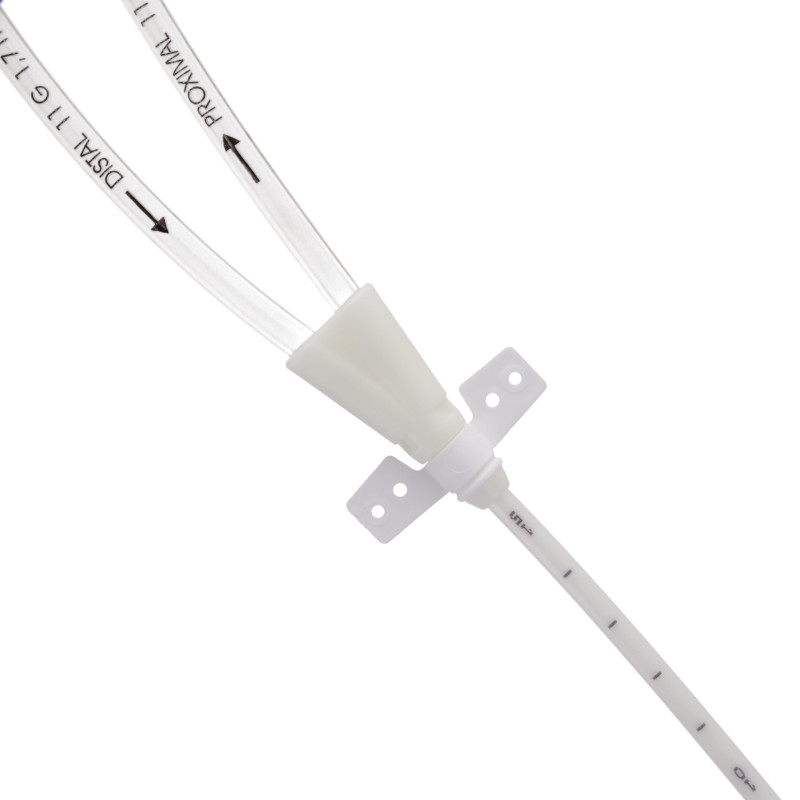

Double-lumen polyurethane catheter for haemodialysis and veno-venous hemofiltration.Totally radiopaque catheter inserted using the Seldinger technique. Markings every centimetre from 9 cm from distal tip. Rotating fixation wings and polyurethane extension tubes with clamp, red on arterial lumen (blood aspiration), blue on venous lumen (blood return to patient). Flexible distal tip.
Dualyse-Cath codes 1132.81/82/91/92 are supplied with a clip allowing to maintain the pigtail in a curved position.

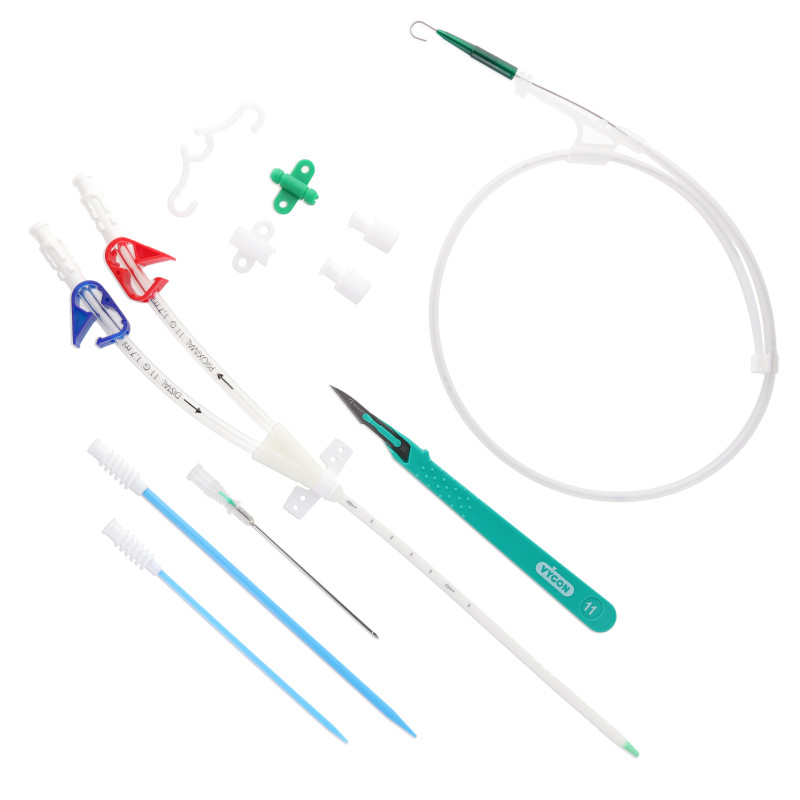

Tray presentation containing:
- 1 double lumen dialysis catheter (PUR-XRO),
- 1 puncture needle Ø 1.1 x 1.4 mm - 70 mm long,
- 1 graduated J guidewire with guidewire advancer, 60 cm long, in stainless steel codes 1132.01/02/11/12, in Nitinol codes 1132.81/82/91/92,
- 2 dilators (8Fr and 12Fr for 12Fr Dualyse-Cath), 1 dilator for 10Fr Dualyse-Cath,
- 1 scalpel,
- 2 caps.
References and Features
| Catheter | Flowrate | Priming volume | Packaging | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Favourites | Code | Length cm | Ø Fr | Distal ml/min | Proximal ml/min | Proximal ml | Distal ml | Units/Box | Units/Case |
| 1132.01 | 15 | 10 | 300 | 300 | 1.1 | 1.2 | 10 | 50 | |
| 1132.02 | 20 | 10 | 280 | 280 | 1.2 | 1.3 | 10 | 50 | |
| 1132.11 | 15 | 12 | 410 | 410 | 1.2 | 1.3 | 10 | 50 | |
| 1132.12 | 20 | 12 | 390 | 390 | 1.4 | 1.5 | 10 | 50 | |
| 1132.81 | 15 | 10 | 205 | 210 | 1.4 | 1.5 | 10 | 10 | |
| 1132.82 | 20 | 10 | 185 | 190 | 1.5 | 1.6 | 10 | 10 | |
| 1132.91 | 15 | 12 | 350 | 380 | 1.7 | 1.7 | 10 | 10 | |
| 1132.92 | 20 | 12 | 315 | 350 | 2.0 | 1.9 | 10 | 10 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free Yes
