Multi-lumen CVC
Multicath 3
Description
Multicath 3 is a XRO polyurethane central venous catheter introduced by Seldinger technique. It consists of 3 lumens completely separated on the… Read more
Indication
Multicath are polyurethane multi-lumen central venous catheters introduced by a classic Seldinger technique, generally into the internal jugular, subclavian and femoral veins (other access sites are also possible). Suitable for short and medium term therapy up to 29 days, allowing: infusion of fluids, medications, blood or blood products, measurement of central venous pressure, intermittent injections, blood sampling…
Description
Multicath 3 is a XRO polyurethane central venous catheter introduced by Seldinger technique.It consists of 3 lumens completely separated on the total length of the catheter. Each lumen leads, at the distal tip of the catheter, to a distinct hole. At the proximal end, the lumens of the catheter are connected to extension tubes of different lengths. Each extension tube includes a different coloured hub and is marked “Distal”, “Medial” and “Proximal” so as to identify easily the different infusion lines.
Multicath 3 is available in 4 lengths: 12.5cm (code 155.052), 16cm (code 155.152), 20cm (code 155.252), or 30cm (code 155.352).

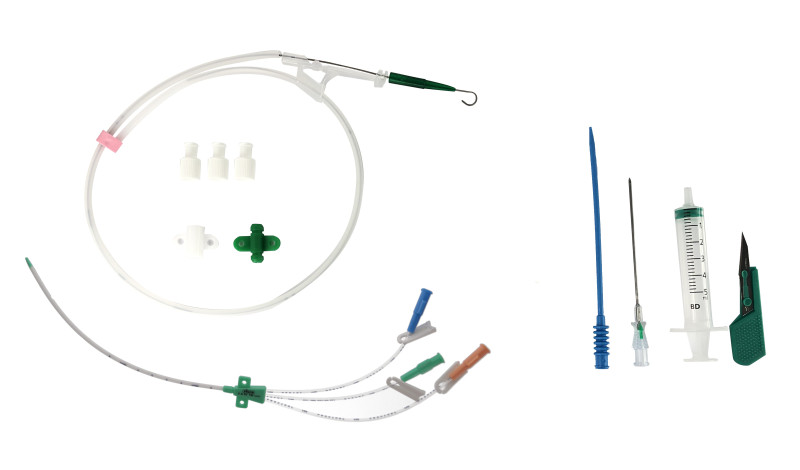

It is presented in a rigid blister pack containing:
- 1 polyurethane catheter (totally radiopaque) with fixation wings and centimetric graduations from 9cm from distal tip. Smooth distal end.
- 1 puncture needle 18G, 70mm,
- 1 scalpel,
- 1 "J" Nitinol guidewire (particularly kink-resistant) with guide-advancer,
- 1 dilator,
- 3 caps,
- 1 5ml syringe,
- 1 supplementary fixation wing for 16, 20, and 30cm catheters.
References and Features
| Catheter | Proximal lumen | Medial lumen | Distal lumen | Guidewire | Packaging | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Code | Length cm | Ø Fr | Ext. Ø mm | Ø G | Flow rate ml/min | Prim. vol. ml | Ø G | Flow rate ml/min | Prim. vol. ml | Flow rate ml/min | Ø G | Prim. vol. ml | Ø mm | Length cm | Units/Box | Units/Case |
| 155.052 | 12.5 | 7.5 | 2.7 | 18 | 41 | 0.37 | 18 | 38 | 0.32 | 64 | 14 | 0.37 | 0.88 | 60 | 5 | 45 | |
| 155.152 | 16 | 7.5 | 2.7 | 18 | 36 | 0.3 | 18 | 34 | 0.33 | 63 | 14 | 0.30 | 0.88 | 60 | 5 | 45 | |
| 155.252 | 20 | 7.5 | 2.7 | 18 | 30 | 0.36 | 18 | 30 | 0.34 | 60 | 14 | 0.45 | 0.88 | 60 | 5 | 45 | |
| 155.352 | 30 | 7.5 | 2.7 | 18 | 20 | 0.50 | 18 | 18 | 0.40 | 50 | 14 | 0.49 | 0.88 | 70 | 5 | 45 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free Yes
Documentation
-
Brochure Multicath
-
Instructions for use
