Safety Huber needle with Qimono
PPS Nano with Qimofemale valve
Description
PPS® Nano is a curved safety Huber needle with a tubing (extension line), compatible with high pressure injections, CT scan (Computed Tomography)… Read more
Indication
PPS® Nano safety Huber needles are indicated for:
• Administration or withdrawal of fluids through implantable ports.
• Pressure injection of contrast media into the central venous system (up to 325 psi / 2241 kPa maximum) during CT scan or MRI exams, only with an implantable infusion port that is also indicated for high pressure injection.
19G (ø 1.1mm): maximum recommended infusion rate at 11.8 cPs: 5ml/sec.
20G (ø 0.9mm): maximum recommended infusion rate at 11.8 cPs: 5ml/sec.
22G (ø 0.7mm): maximum recommended infusion rate at 11.8 cPs: 2ml/sec.
All codes can be used on adult and in paediatrics (children > 10 kg).
Product highlights
Ergonomic design:
PPS® Nano is a small, discreet, transparent Huber safety needle that ensures patient comfort. PPS® Nano is suitable for children (> 10 kg) and adults. Like the rest of the PPS® range, this needle makes it possible to visualize the puncture site and monitor any complications.
Its design facilitates singled-handed positive pressure on removal. This helps prevent catheter occlusions (1) (2) (3).
Compatible with high-pressure injections up to 325 psi:
PPS® Nano is compatible with MRI procedures and contrast media injection during CT scans. Gauge, perfusion rate and maximum pressure supported by the needle are indicated on the needle clamp.
Safety for the user:
PPS® Nano participate to Needle Stick Injuries (NSI) prevention. This safe Huber needle offering protection against the risks of NSI (4). During disposal, there is no contact between the body and the needle tip.
PPS® Nano also contribute to chemical contamination reduction. Indeed, PPS® Nano is available with a qimofemale valve pre-sealed to the female luer lock at the tip of the tubing. Qimofemale is mandated to protect healthcare workers against chemical contamination during chemotherapy perfusion and also prevents connection errors with others ISO 80369 connectors (5) (6).
From paediatric to adults: PPS® Nano is part of a wide range of Huber needles to suit all patient morphologies:
- 3 gauges (22G, 20G and 19G)
- 6 lengths (15, 17, 20, 25, 30, 35 mm).
PPS® Nano is available with or without a Y site.
(1) Gorski LA, Hadaway L, Hagle ME, Broadhurst D, Clare S, Kleidon T, Meyer BM, Nickel B, Rowley S, Sharpe E, Alexander M. Infusion Therapy Standards of Practice, 8th Edition. J Infus Nurs. 2021 Jan-Feb 01;44(1S Suppl 1):S1-S224. doi: 10.1097/
NAN.0000000000000396. PMID: 33394637.
(2) Lapalu J, Losser MR, Albert O, Levert A, Villiers S, Faure P, Douard MC. Totally implantable port management: impact of
positive pressure during needle withdrawal on catheter tip occlusion (an experimental study). J Vasc Access. 2010 Jan-Mar;11(1):46-51. doi: 10.1177/112972981001100110. PMID: 20175068.
(3) Levert H, Albert O, Barret E, Villiers S, Douard MC, A randomized experimental comparison of two safety Huber
needles (HN) allowing manual or automatic positive pressure during needle removal: effect on the distal catheter reflux, poster, WoCoVA, 2014.
(4) Survey of the occurrence circumstances of Accidental Blood Exposure due to punctures with safety materials, GERES – AFSSAPS Collaboration, G. Pellissier, 18th Annual GERES conference, 2008.
(5) Pesqué et al; JVA september 2021 "Safe disconnection of elastomeric pumps".
(6) Sylvia Bartel et al, "Multicenter evaluation of a CSTD in reducing surface contamination by antineoplastic hazardous drugs".
The Huber needle PPS® Nano is a sterile medical device of class IIa.
Certification established by GMED, notified body n°0459.
They are indicated for the administration into or withdrawal of fluids from implanted ports.
Read the instructions for use carefully.
Device manufactured by PEROUSE MEDICAL and distributed by VYGON.
Description

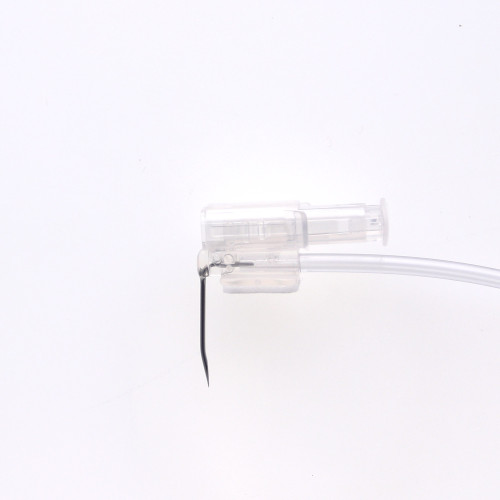

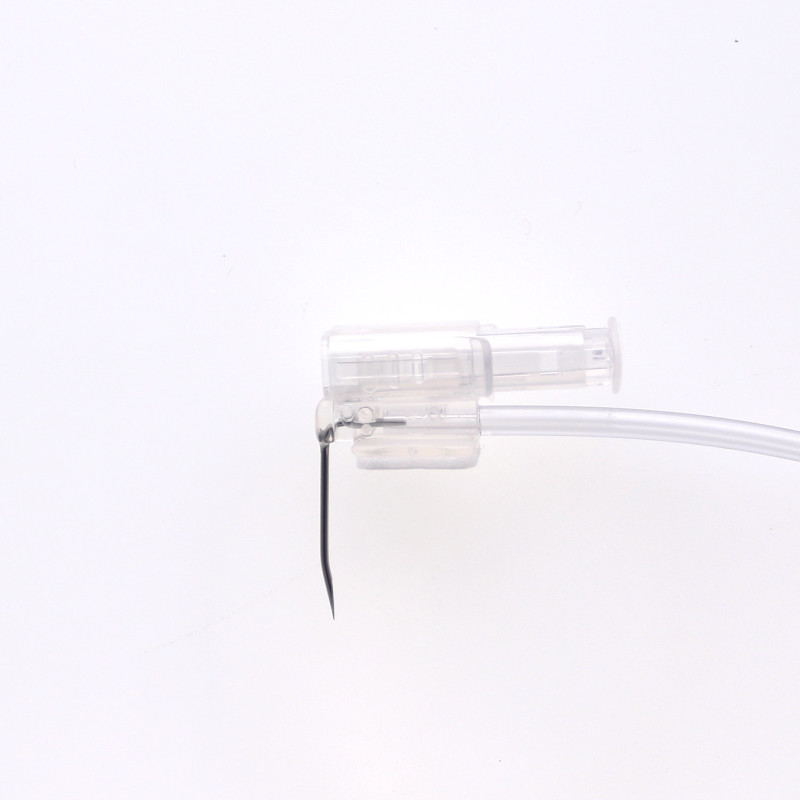

PPS® Nano is a curved safety Huber needle with a tubing (extension line), compatible with high pressure injections, CT scan (Computed Tomography) and MRI (Magnetic Resonance Imaging) exams.PPS® Nano is designed to prevent blood-borne pathogen exposures caused by accidental needlestick injuries.
PPS® Nano is available without Y-site and with a safety adaptor Qimo female pre-sealed to the female Luer-lock at the tip of the tubing. The needle is available in various lengths (15, 17, 20, 25, 30, 35mm) and diameters (22G, 20G, 19G).

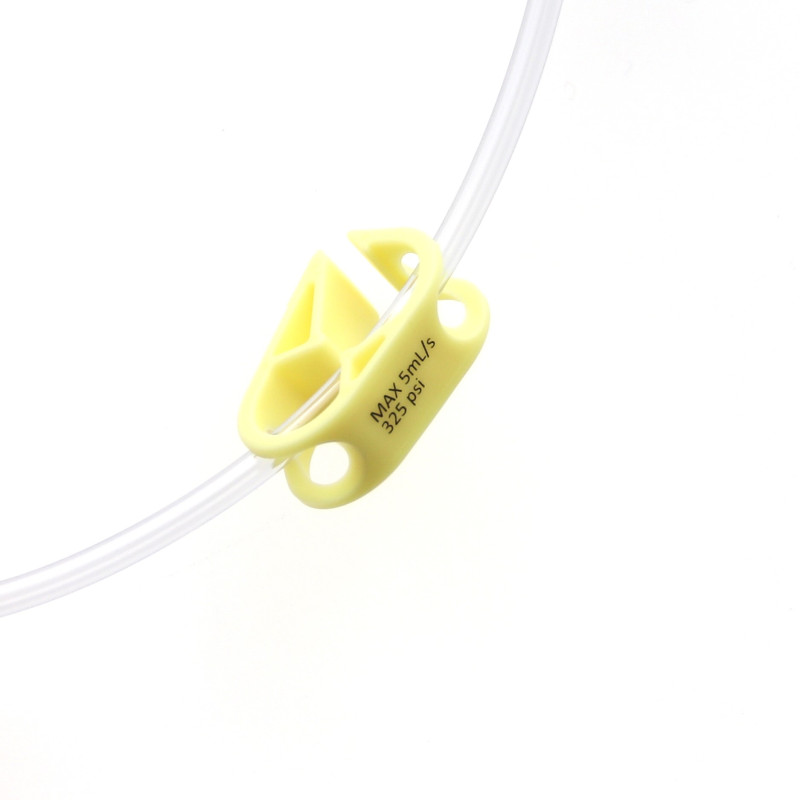

PPS® Nano is supplied with one clamp indicating the gauge, the maximum flow rate and the maximum pressure supported by the needle during high pressure injections.
The Qimo connector female complies with standard ISO 80369-1 and prevents connection errors with other ISO 80369 connectors. Its proximal bayonet connection can also fasten to Qimo male.
PPS® Nano are packaged in 10 per box.
PPS® Nano is not made with dry or natural rubber latex (raw materials and packaging).
REFERENCES:
- 22G: 421507, 421707, 422007, 422507, 423007, 423507,
- 20G: 421509, 421709, 422009, 422509, 423009, 423509,
- 19G: 421511, 421711, 422011, 422511, 423011, 423511.
15mm is the preferred length for use in pediatrics. 35mm is the recommend length for use in larger patients.
References vary according to the useful length of the needle and the gauge size of the needle.
References and Features
| Needle | Packaging | |||||
|---|---|---|---|---|---|---|
| Favourites | Code | Gauge G | Ext. Ø mm | Length mm | Units/Box | Units/Case |
| 421507 | 22 | 0.7 | 15 | 10 | 300 | |
| 421509 | 20 | 0.9 | 15 | 10 | 300 | |
| 421511 | 19 | 1.1 | 15 | 10 | 300 | |
| 421707 | 22 | 0.7 | 17 | 10 | 300 | |
| 421709 | 20 | 0.9 | 17 | 10 | 300 | |
| 421711 | 19 | 1.1 | 17 | 10 | 300 | |
| 422007 | 22 | 0.7 | 20 | 10 | 300 | |
| 422009 | 20 | 0.9 | 20 | 10 | 300 | |
| 422011 | 19 | 1.1 | 20 | 10 | 300 | |
| 422507 | 22 | 0.7 | 25 | 10 | 300 | |
| 422509 | 20 | 0.9 | 25 | 10 | 300 | |
| 422511 | 19 | 1.1 | 25 | 10 | 300 | |
| 423007 | 22 | 0.7 | 30 | 10 | 300 | |
| 423009 | 20 | 0.9 | 30 | 10 | 300 | |
| 423011 | 19 | 1.1 | 30 | 10 | 300 | |
| 423507 | 22 | 0.7 | 35 | 10 | 300 | |
| 423509 | 20 | 0.9 | 35 | 10 | 300 | |
| 423511 | 19 | 1.1 | 35 | 10 | 300 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free No
