Tip location with ECG
Combcard
Description
The combcard is a red ECG (electrocardiogram) cable with a pushbutton and a crocodile clip. The push button is connected to the ECG monitor. The… Read more
Indication
The combcard ECG cable is used for intracavitary electrocardiagram guidance during a CVC (central venous catheter) insertion.
Description

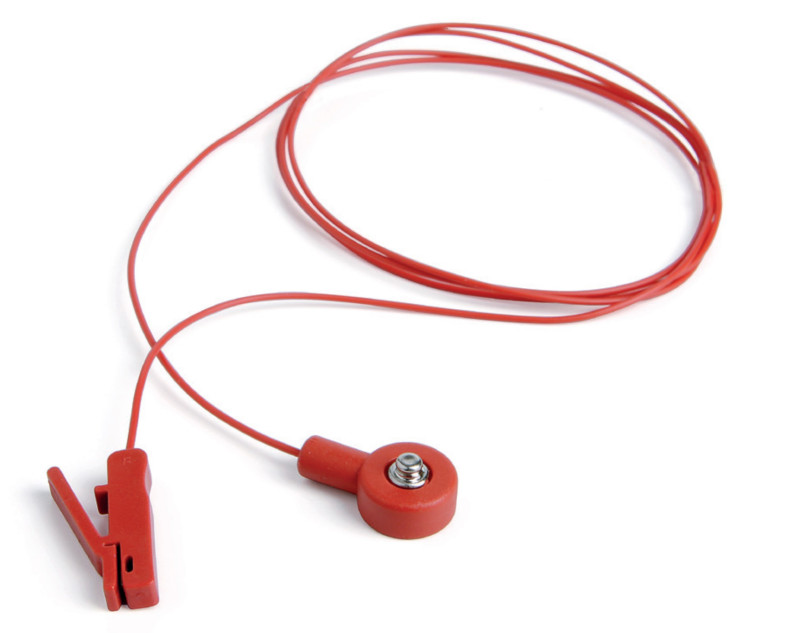

The combcard is a red ECG (electrocardiogram) cable with a pushbutton and a crocodile clip.The push button is connected to the ECG monitor. The crocodile clip is connected to the guidewire whose « J » tip (and only the J tip) protrudes the distal end of the catheter. When the tip of the central venous catheter reaches the superior vena cava and advances towards the right atrium, the P-wave gains in amplitude. When the P-wave is at half of the QRS wave or at its highest amplitude, without being biphasic (the P-wave must show no negative feature which would indicate that the catheter is within the right atrium and must be slightly withdrawn), the catheter is in the correct position.
References and Features
| Lead | Packaging | |||
|---|---|---|---|---|
| Favourites | Code | Length cm | Units/Box | Units/Case |
| 9168.202 | 110 | 10 | 40 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free No
Documentation
-
Brochure Multicath UP range
-
Brochure Multicath
-
Instructions for use
