Umbilical catheters
Single silicone lumen / Haumont kit
Description
The Haumont kit allows to place safely and without pain a silicone catheter for long-term access in the umbilical vein with a specific introducer… Read more
Indication
Silicone central venous catheter which can be inserted either in a peripheral vein (basilic, cephalic, saphena, scalp vein...) or in the umbilical vein.
Indications: parenteral nutrition, intravenous antibiotherapy, drugs administration...
Description
The Haumont kit allows to place safely and without pain a silicone catheter for long-term access in the umbilical vein with a specific introducer.With the Haumont kit, the user can choose to place the catheter either in a peripheral vein (basilic, cephalic, saphena...) using the winged needle introducer or in the umbilical vein.
If the catheter is inserted in the umbilical vein, it must be placed using one of the 3 introducers (Ø 6Fr, in PVC) supplied in the kit. These introducers have 3 different lengths (8 cm, 9 cm and 11 cm) to suit the size of the baby and the distance of the cord section.
Graduations every centimetre up to 25cm. Removable Easy-lock connector with integrated PUR extension tube (10cm long).

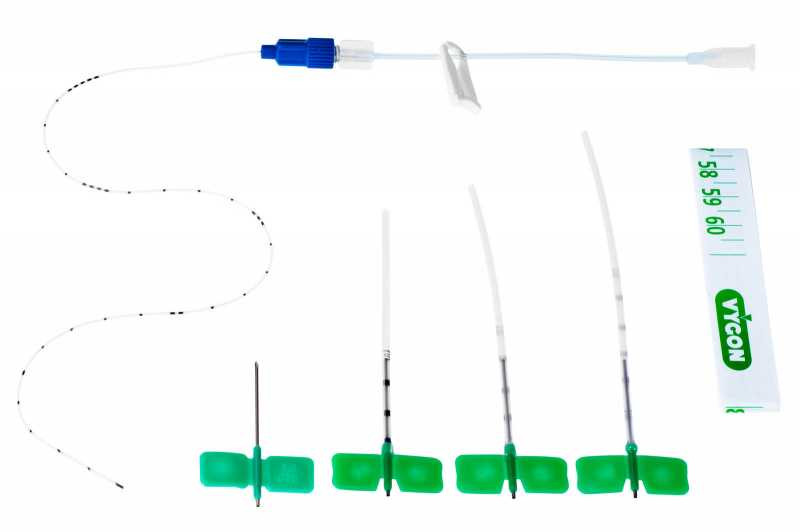

The Haumont kit is presented in a rigid blister pack containing:
- 1 epicutaneo-cava silicone catheter 2Fr, 24G, 30 cm long
- 3 introducers for inserting the catheter in the umbilical vein Ø 6Fr, length 8, 9 and 11cm
- 1 winged stainless steel needle (Ø 1.0mm - 19G - 27mm long) if the user prefers to insert the catheter in a peripheral vein instead of the umbilical vein
- 1 measuring tape
Quantity box/case: 10/50
References and Features
| Introducer | Catheter | Packaging | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Code | Length cm | Ext. Ø Fr | Int. Ø mm | Ext. Ø mm | Gauge G | Length cm | Flow rate (Pressure 1 bar) ml/min | Prim. vol. ml | Ø Fr | Units/Box | Units/Case |
| 2184.01 | 8.9 and 11 | 6 | 0.3 | 0.6 | 24 | 30 | 3.0 | 0.12 | 2 | 10 | 50 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free Yes
