Multi-lumen CVC
Multicath 3 - 5.5Fr
Description
Paediatric Multicath 3 is a radiopaque 5.5Fr polyurethane central venous catheter inserted in the internal jugular, subclavian or femoral vein using… Read more
Indication
Multicath 3 is a triple-lumen CVC inserted in the internal jugular, subclavian or femoral vein using the Seldinger technique allowing:
- Infusion of parenteral nutrition, drugs administrations, hyperosmolar solutions,
- Transfusion of blood, or blood products,
- Blood samplings,
- Simultaneous administration of medication even those presenting chemical incompatibilities,
- Central venous pressure measurements.
Product highlights
- A choice of multi-lumen CVCs designed and adapted to the needs of the paediatric patient according to age, height and weight:
- 2 or 3 lumens
- diameters: 3, 4.5 and 5.5 Fr
- lengths: 6 to 30 cm. - A choice of polyurethane multilumen CVC according to patient risk:
- multicath: standard PUR for low risk patients
- multistar: antimicrobial technology with rifampicin and miconazole for high risk patients - Components designed for the safety of paediatric patients:
- a choice of introducers : hyper echogenic needle or short I.V cannula
- highly kink resistant double ended flexible, J and straight, nitinol guidewire coated with teflon for ultra low resistance
Description
Paediatric Multicath 3 is a radiopaque 5.5Fr polyurethane central venous catheter inserted in the internal jugular, subclavian or femoral vein using the Seldinger technique for paediatric use. Tri lumen Multicath 5.5 Fr consists of three lumen completely separated on the total length of the catheter. Each lumen leads, at the distal tip of the catheter, to a distinct hole. At the proximal end, the 3 lumen of the catheter are connected to extension tubes of different lengths; besides each extension tube is marked "DISTAL", "MEDIAL" or "PROXIMAL" and includes a different colored hub so as to identify easily the different infusion lines.The user can choose between 2 types of introducer: 1 echogenic puncture needle or 1 short I.V. cannula.

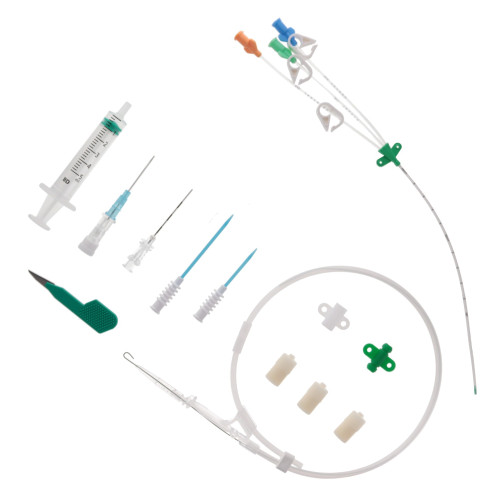

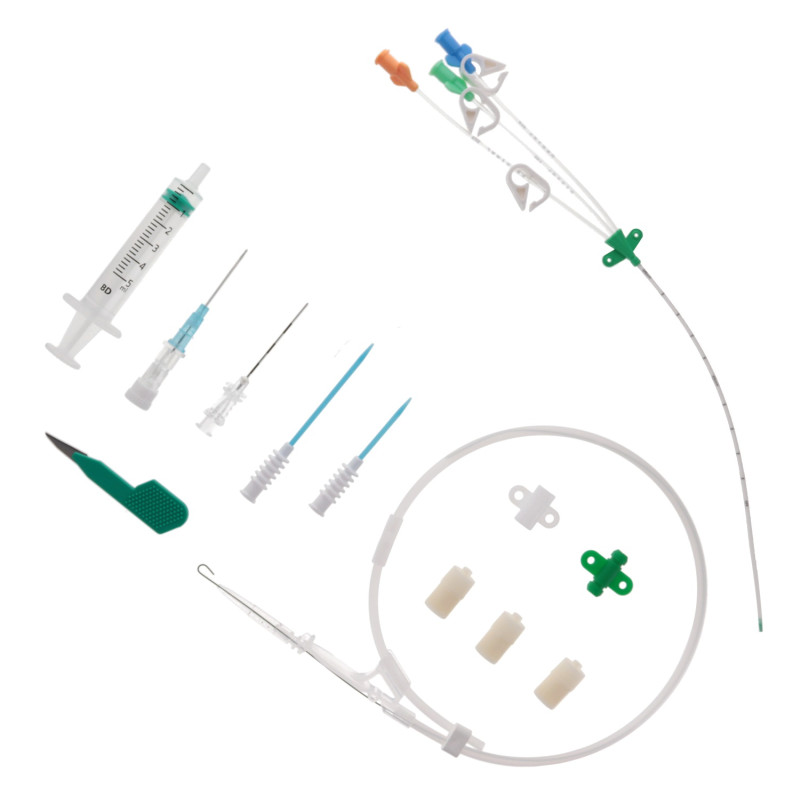

Multicath 3 is presented in a rigid blister pack containing:
- 1 triple-lumen radiopaque catheter with intermediate hub fitted with soft fixation wings, centimetric markings from 5 cm from the distal tip Ø 5,5Fr - Length: 8 cm - 12,5 cm - 15 cm - 20 cm or 30 cm. Supple distal end.
- 1 echogenic introducer needle ext. Ø 0.8 mm - 21G - Length 38 mm,
- 1 short IV catheter 22G, Length 25 mm,
- 1 J teflon-coated Nitinol guidewire with guide advancer , Length 40 cm for codes 155.508, 155.512 and 155.515 and 70 cm for codes 155.520 and 155.530,
- 2 dilators 6Fr (Length 3 cm and 5 cm),
- 3 injection caps,
- 1 5 ml syringe,
- 1 secondary fixation wing,
- 1 scalpel.
References and Features
| Catheter | Distal lumen | Medial lumen | Proximal lumen | Guidewire | Packaging | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Code | Length cm | Ø Fr | Ext. Ø mm | Flow rate ml/min | Prim. vol. ml | Ø G | Flow rate ml/min | Prim. vol. ml | Ø G | Flow rate ml/min | Prim. vol. ml | Ø G | Ø mm | Length cm | Units/Box | Units/Case |
| 155.508 | 8 | 5.5 | 1.8 | 27 | 0.22 | 19 | 16 | 0.21 | 21 | 17 | 0.24 | 21 | 0.46 | 40 | 5 | 45 | |
| 155.512 | 12.5 | 5.5 | 1.8 | 24 | 0.24 | 19 | 12 | 0.23 | 21 | 13 | 0.23 | 21 | 0.46 | 40 | 5 | 45 | |
| 155.515 | 15 | 5.5 | 1.8 | 23 | 0.25 | 19 | 8 | 0.16 | 21 | 8 | 0.16 | 21 | 0.46 | 40 | 5 | 45 | |
| 155.520 | 20 | 5.5 | 1.8 | 20 | 0.28 | 19 | 8.4 | 0.26 | 21 | 8.8 | 0.27 | 21 | 0.46 | 70 | 5 | 45 | |
| 155.530 | 30 | 5.5 | 1.8 | 17 | 0.39 | 19 | 5.5 | 0.28 | 21 | 5.8 | 0.29 | 21 | 0.46 | 70 | 5 | 45 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free Yes
Documentation
-
Brochure Paediatric Multicath & Multistar
-
Instructions for use
