Single lumen CVC
Leaderflex 22G - 2 Fr
Description
Leaderflex is a radiopaque polyurethane catheter with fixation wings and integral extension tube 4.4 cm long (except codes 1212.20/205: 9.8 cm long)… Read more
Indication
Leaderflex code 1212 can be used as:
- a central venous catheter in children inserted in the jugular, subclavian or femoral vein,
- a Midline catheter inserted in a peripheral vein (in children and adults),
- an arterial catheter in children.
Product highlights
- Smooth catheter placement thanks to the classical Seldinger technique allowing 3 different applications:
- Paediatric central venous catheter
- Arterial catheter
- Extended dwell peripheral IV catheter - A flexible radio-opaque polyurethane material with a small diameter of 0.75mm - 22G, suitable for small vessels of babies, children, and adults.
- Integrated extension to remove handling away from insertion site and wings for optimal securement
Description
Leaderflex is a radiopaque polyurethane catheter with fixation wings and integral extension tube 4.4 cm long (except codes 1212.20/205: 9.8 cm long).When it comes with straigth guidewire, Leaderflex is suitable for a variety of venous and arteriel applications in adults and children and in particular:- Central venous catheterization (jugular, subclavian, femoral) in children,
- Arterial catheterization in children (codes 1212.04/06),
- Peripheral venous catheterization (Midline) in adults and children.
The references with a J Nitinol guidewire (1212.062/082) are only indicated for CVC application.
Leaderflex, used as Midline, is an alternative to short I.V. cannulae for patients who require intravenous therapy for more than 5 days, improving the quality of patient care: no need for repeated venipunctures with short I.V. cannulae, less risk of chemical and mechanical phlebitis because Leaderflex is made of supple material and can be inserted above the antecubital fossa (improved stabilisation of the catheter, higher blood flow rate in the vessel).

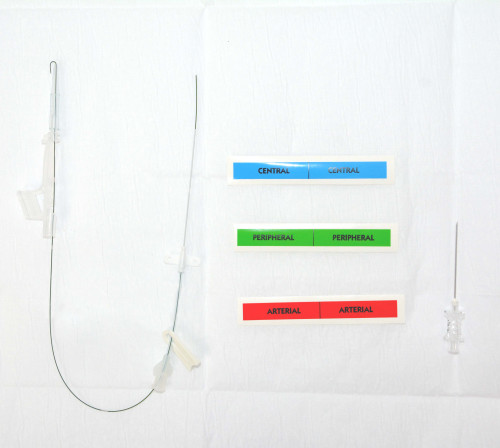

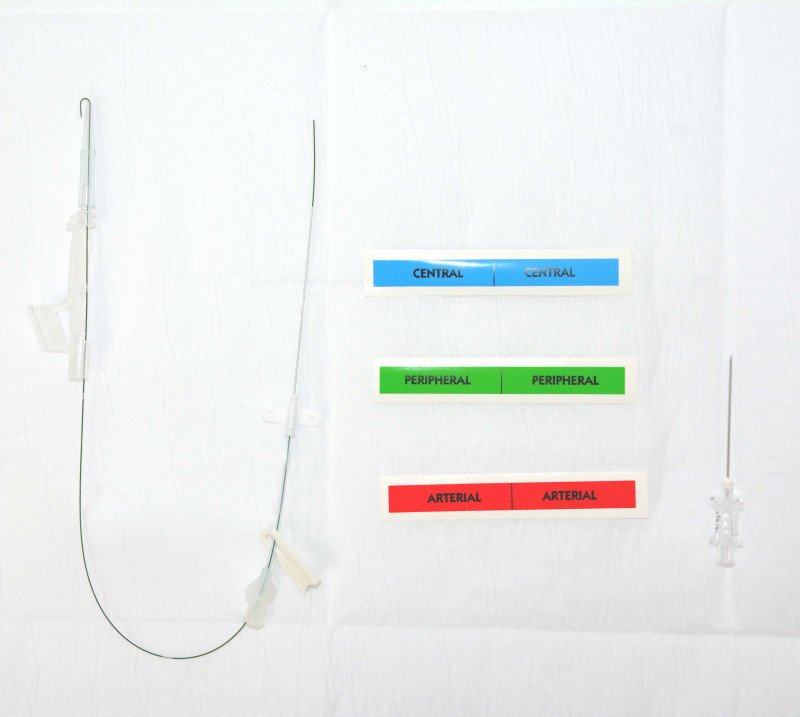

Leaderflex includes:
- 1 puncture needle 21G, 42 mm long,
- 1 radiopaque catheter (Ø 0.55 x 0.75 mm - 22G - 2Fr) featuring on the distal end an integral extension tube, fixation wings to ease the fixation and a Luer-lock female connector.
- 1 straight metallic guidewire (Ø 0.46mm) 23cm long for codes 1212.04/06, 26cm long for codes 1212.08/10, 40cm long for code 1212.15 and 50cm long for codes 1212.20/205.
- 1 J Nitinol guidewire Ø 0.46mm long. 40cm (codes 1212.062/082),
- 1 drape 50 x 50 cm,
- 3 labels to be used according to catheter application: "Peripheral", "Arterial" and "Central".
References and Features
| Catheter | Puncture needle | Guidewire | Packaging | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Code | Ext. Ø mm | Gauge G | Flow rate ml/min | Length mm | Ø Fr | Prim. vol. ml | Int. Ø mm | G G | Length mm | Ø mm | Length mm | Units/Box | Units/Case |
| 1212.04 | 0.75 | 22 | 17 | 40 | 2 | 0.15 | 0.55 | 21 | 42 | 0.46 | 230 | 20 | 20 | |
| 1212.06 | 0.75 | 22 | 14 | 60 | 2 | 0.16 | 0.55 | 21 | 42 | 0.46 | 230 | 20 | 20 | |
| 1212.062 | 0.75 | 22 | 14 | 60 | 2 | 0.16 | 0.55 | 21 | 42 | 0.46 | 400 | 20 | 20 | |
| 1212.08 | 0.75 | 22 | 12 | 80 | 2 | 0.17 | 0.55 | 21 | 42 | 0.46 | 260 | 20 | 20 | |
| 1212.082 | 0.75 | 22 | 12 | 80 | 2 | 0.17 | 0.55 | 21 | 42 | 0.46 | 400 | 20 | 20 | |
| 1212.10 | 0.75 | 22 | 10 | 100 | 2 | 0.18 | 0.55 | 21 | 42 | 0.46 | 260 | 20 | 20 | |
| 1212.15 | 0.75 | 22 | 7 | 150 | 2 | 0.19 | 0.55 | 21 | 42 | 0.46 | 400 | 20 | 20 | |
| 1212.20 | 0.75 | 22 | 4.4 | 200 | 2 | 0.20 | 0.55 | 21 | 42 | 0.46 | 500 | 20 | 20 | |
| 1212.205 | 0.75 | 22 | 4.4 | 200 | 2 | 0.2 | 0.55 | 21 | 42 | 0.46 | 500 | 20 | 20 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free Yes
Documentation
-
Brochure LeaderFlex
-
Instructions for use
FAQ
Code 1212.205: What is the maximum pressure for this catheter?
This catheter shall not be subjected to pressures above 29 PSI (2 bar).
