Peripheral IV catheters
Intraflon 2
Description
Intraflon 2 is a short I.V. cannula available in size 24G, 22G, 20G, 18G, 16G, 14G, 13G and 12G. Intraflon 2 is made of a transparent (non radiopaque… Read more
Indication
Intended to be used for infusion of intravenous fluid, drugs, blood or blood products in peripheral venous bloodstream. They can also be used for blood sampling or to introduce other venous catheters.
Description

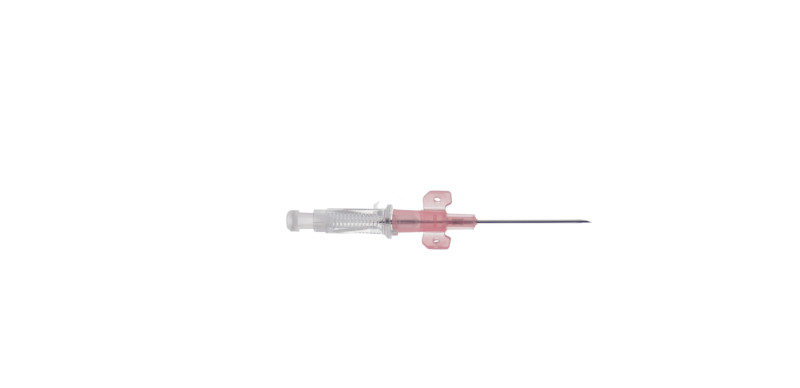

Intraflon 2 is a short I.V. cannula available in size 24G, 22G, 20G, 18G, 16G, 14G, 13G and 12G.Intraflon 2 is made of a transparent (non radiopaque) PTFE cannula with winged hub and internal needle.
The distal end of the cannula is tapered to facilitate its penetration into the skin and vein and the proximal end comprises a female Luer-lock connector for connection to an infusion device. The hub of the puncture needle has a chamber for display of the blood reflux that occurs when the needle bevel penetrates into the vessel to be cannulated.
Colour code according to ISO norm 10555-5.
Intraflon 2 is available with a slightly longer cannula than code 121 (see technical file code 122).
References and Features
| Catheter | Packaging | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Favourites | Code | Int. Ø mm | Gauge G | Length mm | Colour code | Flow rate ml/min | Ext. Ø mm | Units/Box | Units/Case |
| 121.10 | 0.7 | 20 | 30 | Pink | 52 | 1.0 | 50 | 1000 | |
| 121.13 | 0.9 | 18 | 38 | Green | 100 | 1.3 | 50 | 1000 | |
| 121.16 | 1.2 | 16 | 52 | Grey | 174 | 1.6 | 50 | 1000 | |
| 121.21 | 1.6 | 14 | 52 | Orange | 260 | 2.1 | 50 | 1000 | |
| 121.24 | 1.9 | 13 | 52 | Red | 315 | 2.4 | 50 | 1000 | |
| 121.27 | 2.2 | 12 | 52 | Light blue | 450 | 2.7 | 50 | 1000 | |
| 122.10 | 0.7 | 20 | 36 | Pink | 50 | 1.0 | 50 | 1000 | |
| 122.13 | 0.9 | 18 | 47 | Green | 95 | 1.3 | 50 | 1000 | |
| 122.16 | 1.2 | 16 | 60 | Grey | 170 | 1.6 | 50 | 1000 | |
| 122.21 | 1.6 | 14 | 80 | Orange | 215 | 2.1 | 50 | 1000 | |
| 122.24 | 1.9 | 13 | 80 | Red | 340 | 2.4 | 50 | 1000 | |
| 122.27 | 2.2 | 12 | 80 | Light blue | 430 | 2.7 | 50 | 1000 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free Yes
