Pressure injectable PICC
CT PICC Maestro IR kit
Description
Availaible in 3Fr - 1L, 4Fr - 1L and 2L, 5Fr - 1L and 2L, 6Fr - 2L and 3L Biostable polyurethane catheter 60cm Radio-opaque Compatible… Read more
Indication
Central venous access for short-term (up to 29 days) or long-term (> 29 days) IV therapy. For administration of parenteral nutrition, antibiotics, chemotherapy, IV medication, fluids or drugs for pain management, for blood withdrawal for pressure injection of contrast media.
Product highlights
High Pressure injectable:
Lifecath CT PICC Maestro is compatible with high pressure injection up to 5 mL/s (300 psi).
A reverse tapered catheter:
The Lifecath CT PICC Maestro catheter is reverse tapered on its proximal end to prevent bleeding at the insertion site.
Wide range:
The Lifecath CT PICC Maestro is available in four catheter sizes: 3Fr, 4Fr, 5Fr and 6Fr, in one, two or three lumens. To meet the needs of different types of placers and their insertion technique, there are several kit configurations:
- Nursing with 45 cm guidewire
- Basic with 70 cm guidewire
- IR with 130 cm guidewire
Description
Availaible in 3Fr - 1L, 4Fr - 1L and 2L, 5Fr - 1L and 2L, 6Fr - 2L and 3LBiostable polyurethane catheter
- 60cm
- Radio-opaque
- Compatible with high pressure contrast injections up to 5 ml/sec and 300 psi
- Graduated every 5cm
- Tapered design
- Identification on the clamp:
o maximum flow rate
- Profiled fixation wing

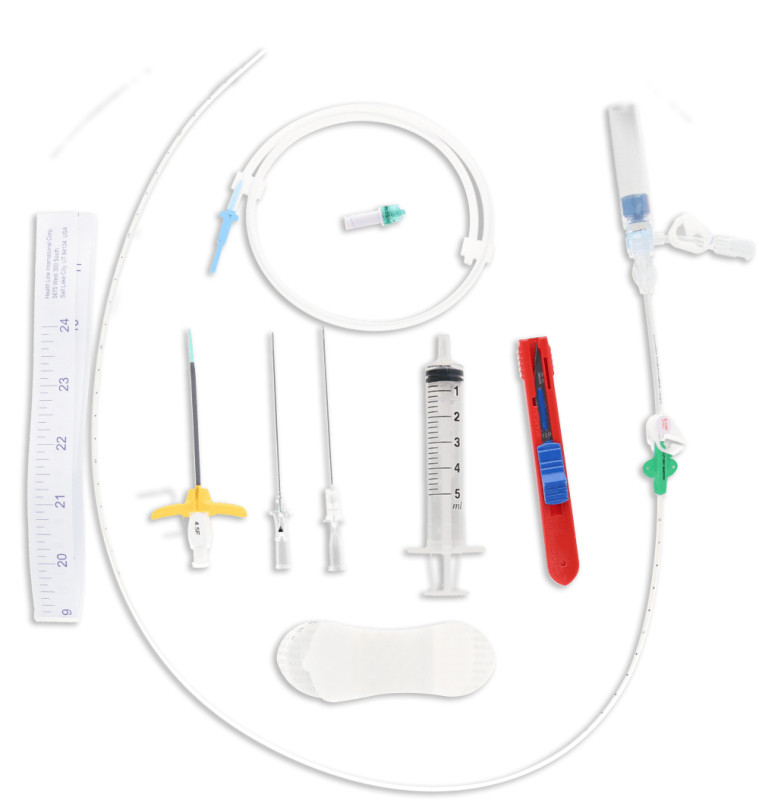

Introduction kit:
- 1 Twisted Wire Stylet
- 21G - 7cm Safety Needle
- 21G - 5cm Non-safety Needle (only for 3Fr - 1L and 4Fr - 2L)
- Tearaway Introducer
o 10cm for 4Fr - 1L, 5Fr - 1L, 5Fr - 2L, 6Fr - 2L, 6Fr - 3L in IR kits
o 7cm for 4Fr - 1L, 5Fr - 1L and 2L, 6Fr - 2L and 3L in nursing kits, for all the standard kits, for 3Fr - 1L and 4Fr - 2L in IR kits
- Nitinol Straight Guidewire with lock system
o 70cm in standard kits
o 130cm in IR kits
- 1 10cc Luer Lock Syringe
- 1 n°11 Safety Scalpel
- 1 24″ Paper Tape Measure
- 1 Grip-lok
- 1 or 2 or 3 valves Bionectors
- Traceability labels
- IFU
- Patient guide
References and Features
| Catheter | Packaging | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Code | Kit | Length cm | Injector pressure psi | Fr Fr | Lumen Number | Ext. Ø cm | Prim. vol. ml | Max. flow rate ml/s | Flow rate by gravity ml/min | Units/Box | Units/Case |
| PM-03160IR | IR | 60 | 300 | 3 | 1 | 0.1 | 0.39 | 0.5 | 1.5 | 5 | 20 | |
| PM-04160IR | IR | 60 | 300 | 4 | 1 | 0.15 | 0.50 | 5 | 20 | 5 | 20 | |
| PM-04260IR | IR | 60 | 300 | 4 | 2 | 0.15 | 0.42 | 2 | 3,5 / 3,5 | 5 | 20 | |
| PM-05160IR | IR | 60 | 300 | 5 | 1 | 0.18 | 0.70 | 5 | 35 | 5 | 20 | |
| PM-05260IR | IR | 60 | 300 | 5 | 2 | 0.18 | 0,50 / 0,50 | 5 | 10 / 10 | 5 | 20 | |
| PM-06260IR | IR | 60 | 300 | 6 | 2 | 0.21 | 0,60 / 0,60 | 5 | 5 | 5 | 20 | |
| PM-06360IR | IR | 60 | 300 | 6 | 3 | 0.21 | 0,65 / 0,42 / 0,42 | 5 | 5 | 5 | 20 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free Yes
Documentation
-
Brochure CT PICC Maestro EN
-
Instructions for use
