Introducer set
Desivalve
Description
Catheter introducer with haemostatic valve. Catheter introducer with haemostatic valve for introducing cardiovascular catheters such as Swan-Ganz or… Read more
Indication
Catheter introducer with hemostatic valve for placement of cardiovascular catheters (e.g. temporary pacing catheter, measurement of pulmonary artery pressure, measurement of cardiac output...)
Description
Catheter introducer with haemostatic valve.Catheter introducer with haemostatic valve for introducing cardiovascular catheters such as Swan-Ganz or temporary pacing catheters
- XRO polyethylene sheath provided with colour coded stress-relief collar and fixation wing
- Side arm for injecting medication or venous pressure monitoring
- Non-touch catheter sleeve (Asept-Cath) incorporates a bayonet lock mechanism for secure and rapid attachment to the body of the Desivalve .Distal compression hub minimises the risk of catheter migration

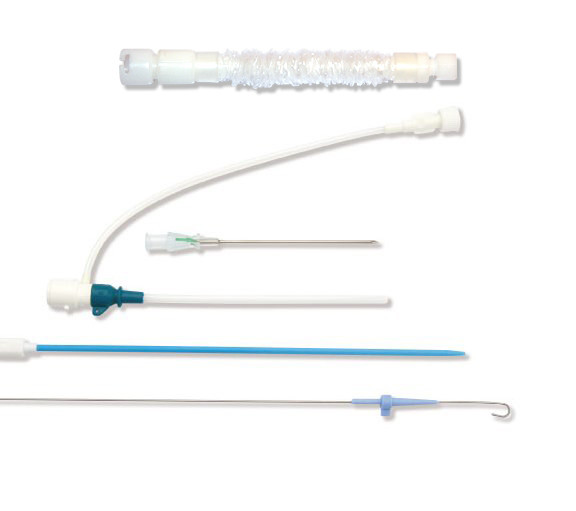

Tray presentation containing:
- 1 dilator and sheath
- 1 non-touch handling sleeve (Asept-Cath)
- 1 introducer needle
- 1 “J” guidewire.
10/40
References and Features
| For catheter | Puncture needle | Guidewire | Sheath | Colour code | Packaging | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Code | Size Fr | of ext.Ø mm | Ext. Ø mm | G G | Length mm | Ext. Ø mm | Length cm | Length cm | - colour | Units/Box | Units/Case |
| 1149.05 | 5 | 1.7 | 1.4 | 17 | 70 | 0.96 | 46 | 10 | Grey | 10 | 40 | |
| 1149.06 | 6 | 2.0 | 1.4 | 17 | 70 | 0.96 | 46 | 10 | Green | 10 | 40 | |
| 1149.07 | 7 | 2.3 | 1.4 | 17 | 70 | 0.96 | 46 | 10 | Pink | 10 | 40 | |
| 1149.08 | 8 | 2.7 | 1.4 | 17 | 70 | 0.96 | 46 | 10 | Blue | 10 | 40 | |
| 1149.09 | 9 | 3.0 | 1.4 | 17 | 70 | 0.96 | 46 | 10 | Yellow | 10 | 40 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free Yes
