Accessories
Sampling devices
Description
This device is designed to aspirate drugs (which must be administered orally, via a feeding tube or via a gastrostomy device) from an ampule… Read more
Indication
Enteral feeding of the newborn, infant and child in the Neonatal or Paediatric Intensive Care Unit, Neonatalogy and Paediatrics.
Product highlights
In order to respond to the specific needs of neonatology, Vygon promotes an enteral range dedicated to neonates and newborns, called nutrisafe2. This range is compliant with ISO 80369-1.
Safe
Specially designed for neonatal patients, nutrisafe2 is a unique safe enteral feeding system incompatible with Luer and other small-bore connectors in accordance with ISO 80369-1 requirements. The risk of misconnection is minimized, and the patient safety is increased.
The lockable system provides additional security. Accidental disconnection is practically impossible, ensuring precious nutrients are received.
Clean
Feeding tube must not create extra risk to neonates by introducing bacteria into their digestive tract.
Studies have shown that the design of ENFit™ comes with the need of setting up a cleaning procedure, and that even followed thoroughly, only 31% of connectors were off residues. (1)
nutrisafe2 is, by design, less prompt to keep residues. Indeed, nutrisafe2 connectors have a less threaded interior to sequester milk or medication and is much smaller. (2)
(1) Lyman, B., Rahe, K. L., Keeler, D., Sherman, A. K., & Abdelhadi, R. A. (2020). Randomized Controlled Trial Assessing the Effectiveness of Two Cleaning Regimens for ENFit® Connectors. Medsurg Nursing, 29(6), 401-406
(2) Risks for Neonates Due to ENFitTM von Dr. Keliana O’Mara.; 2022. Accessed August 4, 2022.
Accurate
Dose accuracy is of great importance in the NICU wards, especially for critical drugs administration. For example, the morphine dose for a preterm baby can start at 0.03 ml. Studies have shown that because of fluid displacement there is an overdosing risk with the syringes.
Description

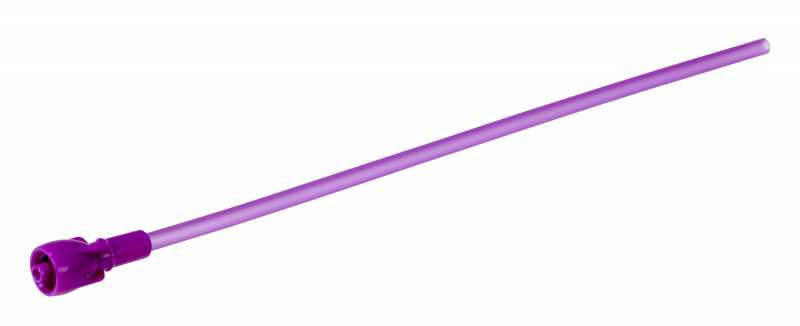

This device is designed to aspirate drugs (which must be administered orally, via a feeding tube or via a gastrostomy device) from an ampule. It is made of a metallic needle (characteristics in the technical features table) with a male locking Nutrisafe2 hub which can be connected to the female end of a Nutrisafe2 syringe.
Note: The Nutrisafe2 connection features a purple colour and specific dimensions so that connecting Nutrisafe2 to a standard Luer 6% fitting is not possible. Consequently, accidental misconnections between parenteral drugs / solutions and enteral drugs / solutions (particularly in stress situations) are avoided and the right administration route is respected.
Quantity box/case : 100/1800
References and Features
Needle | Tube | Cap | Compatibility | Spike | Packaging | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Favourites | Code | Length mm | Ext. Ø mm | Int. Ø mm | Length cm | Int. Ø mm | Ext. Ø mm | Priming volume ml | Ø mm | Vial Ø mm | Priming volume ml | Units/Box | Units/Case |
817.002 | 52 | 1.1 | 0.86 | - | - | - | - | - | - | - | 100 | 1800 | |
817.052 | - | - | - | 5 | 1.2 | 2.0 | 0.11 | - | - | - | 100 | 1800 | |
817.105 | - | - | - | 10 | 1.5 | 2.5 | - | - | - | - | 50 | 900 | |
817.152 | - | - | - | 15 | 2.0 | 3.3 | 0.55 | - | - | - | 50 | 900 | |
817.153 | - | - | - | 15 | 3.0 | 4.2 | 1.2 | - | - | - | 50 | 900 | |
817.154 | - | - | - | 15 | 1.5 | 2.5 | 0.33 | - | - | - | 50 | 900 | |
817.202 | - | - | - | 20 | 2.0 | 3.3 | 0.71 | - | - | - | 50 | 900 | |
817.203 | - | - | - | 20 | 3.0 | 4.2 | 1.5 | - | - | - | 50 | 900 | |
817.302 | - | - | - | 30 | 3.0 | 4.2 | 2.2 | - | - | - | 50 | 600 | |
817.502 | - | - | - | 50 | 2.0 | 3.3 | 1.6 | - | - | - | 20 | 240 | |
820.18 | - | - | - | - | - | - | - | 18 | - | - | 20 | 480 | |
820.20 | - | - | - | - | - | - | - | 20 | - | - | 20 | 480 | |
820.22 | - | - | - | - | - | - | - | 22 | - | - | 20 | 480 | |
820.28 | - | - | - | - | - | - | - | 28 | - | - | 20 | 480 | |
821.012 | - | - | - | - | - | - | - | - | 14 | 0.12 | 50 | 400 | |
821.022 | - | - | - | - | - | - | - | - | 20 | 0.17 | 25 | 200 |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free No
Documentation
-
Brochure Nutrisafe2
-
Enteral nutrition catalogue
-
FAQ - The new ISO standard for enteral nutrition ISO 80369-3
