High Flow CVC

Multicath 5 HF UP

Description

Multicath 5 HF UP is a XRO polyurethane central venous catheter introduced by Seldinger technique. Multicath High Flow UP has been designed to… Read more

Indication

Multicath HF UP are polyurethane multi-lumen central venous catheters introduced by a classic Seldinger technique into the internal jugular, subclavian and femoral veins (other access sites are also possible). Indicated for short term therapy (until 29 days), allowing: fluid infusions, medications, blood or blood products infusion, intermittent injections, measurement of central venous pressure, blood sampling.

See all references

Need more information?

Send a request

Instructions for use

Product highlights

A choice of multilumen CVC according to the patient needs:
- High flow filling up to 400ml/min with multicath High Flow UP
- Multi-perfusion of incompatible solutions: multicath from 2 to 7 lumen
- Dedicated lumen for high-pressure injection
A choice of polyurethane multilumen CVC according to patient risk:
- multicath UP: standard PUR for low risk patients
- multicath expert UP: Agion patented antimicrobial technology, with silver ions, for middle risk patients
- multistar UP: antimicrobial technology with rifampicin and miconazole for high risk patients
UPgraded protection of patients and users:
- CVC position control with intracavitary ECG lead
- Safefy seldisafe needle and scalpel to limit needlestick injuries
- Blood Less System valve to reduce blood spilage and blood exposure

Description

Multicath 5 HF UP is a XRO polyurethane central venous catheter introduced by Seldinger technique.

Multicath High Flow UP has been designed to achieve rapid safe volume replacement through the proximal lumen and allow intravenous therapy, infusion and blood sampling.

Moreover the HF catheters present a high pressure distal line (marked « HP ») to enable a flowrate of 5ml/s at a viscosity of 11.8mPas under 150psi/10bar.

It consists of 5 lumens completely separated on the total length of the catheter. Each lumen leads, at the distal tip of the catheter, to a distinct hole. At the proximal end, the lumens of the catheter are connected to extension tubes of different lengths. Each extension tube includes a different coloured hub and is marked “Distal", “Medial 1”, “Medial 2”, “Medial 3”, and “Proximal” so as to identify easily the different infusion lines.

Multicath5 HF UP is available in 3 lengths: 12.5cm (code 159.912), 16cm (code 159.916), and 20cm (code 159.920).

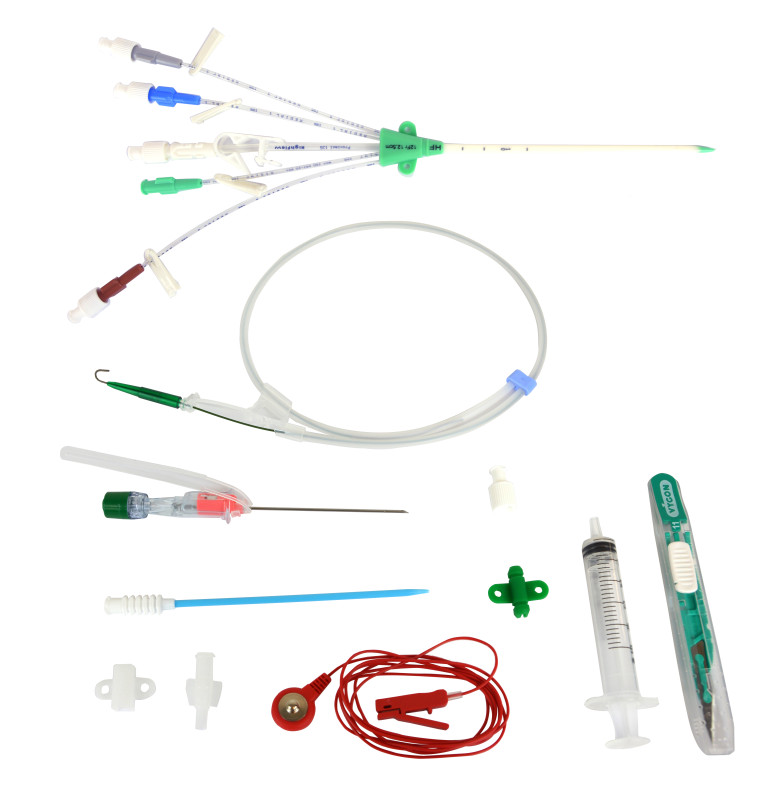

It is presented in a rigid blister pack containing:

1 polyurethane catheter (totally radiopaque) with fixation wings and centimetric graduations from 9cm from distal tip. Smooth distal end,
1 safety needle (Seldisafe) 18G, 70mm, to prevent needlestick injuries,
1 BLS valve (blood less system) fitted to the Seldisafe puncture needle, to minimize blood loss,
1 safety scalpel,
1 Teflon-coated "J" Nitinol guidewire (particularly kink-resistant) with guide-advancer,
2 dilators 8.5Fr / Length 100mm and 12Fr / Length 140mm,
5 caps,
1 5ml syringe,
1 supplementary fixation wing for 16 and 20cm catheters,
1 ECG cable (Combcard) for precise tip placement for 16 and 20cm catheters.

References and Features

		Catheter			Distal lumen			Medial lumen			Medial lumen 2			Medial lumen 3			Proximal lumen			Guidewire		Packaging
Favourites	Code	Ext. Ø mm	Length cm	Ø Fr	Flow rate ml/min	Prim. vol. ml	Ø G	Flow rate ml/min	Prim. vol. ml	Ø G	Flowrate ml/min	Prim. vol. ml	Ø G	Flowrate ml/min	Prim. vol. ml	Ø G	Flow rate ml/min	Prim. vol. ml	Ø G	Length cm	Ø mm	Units/Box	Units/Case
	159.912	4	12.5	12	50	0.60	16	16	0.50	18	16.5	0.50	18	17	0.55	18	400	1.60	12	60	0.88	5	45
	159.916	4	16	12	45	0.65	16	14	0.55	18	14.5	0.55	18	15	0.60	18	350	1.80	12	60	0.88	5	45
	159.920	4	20	12	40	0.70	16	12	0.60	18	12.5	0.60	18	13	0.65	18	300	2.00	12	60	0.88	5	45
