Multi-lumen CVC

Multicath 7 UP

Description

Multicath 7 UP is a XRO polyurethane central venous catheter introduced by Seldinger technique. It consists of 7 lumen completely separated on the… Read more

Indication

Multicath UP are polyurethane multi-lumen central venous catheters introduced by a classic Seldinger technique, generally into the internal jugular, subclavian and femoral veins (other accesses sites are also possible). Suitable for short and medium term therapy less than 30 days, allowing: infusion of fluids, medications, blood or blood products, measurement of central venous pressure, intermittent injections, blood sampling…

See all references

Need more information?

Send a request

Instructions for use

Product highlights

A choice of multilumen CVC according to the patient needs:
- High flow filling up to 400ml/min with multicath High Flow UP
- Multi-perfusion of incompatible solutions: multicath from 2 to 7 lumen
- Dedicated lumen for high-pressure injection
A choice of polyurethane multilumen CVC according to patient risk:
- multicath UP: standard PUR for low risk patients
- multicath expert UP: Agion patented antimicrobial technology, with silver ions, for middle risk patients
- multistar UP: antimicrobial technology with rifampicin and miconazole for high risk patients
UPgraded protection of patients and users:
- CVC position control with intracavitary ECG lead
- Safefy seldisafe needle and scalpel to limit needlestick injuries
- Blood Less System valve to reduce blood spilage and blood exposure

Description

Multicath 7 UP is a XRO polyurethane central venous catheter introduced by Seldinger technique.

It consists of 7 lumen completely separated on the total length of the catheter. Each lumen leads, at the distal tip of the catheter, to a distinct hole. At the proximal end, the lumen of the catheter are connected to extension tubes of different lengths. Each extension tube includes a different coloured hub and is marked “Distal”, “Medial 1”, “Medial 2”, “Medial 3”, “Medial 4”, “Medial 5”, and “Proximal” so as to identify easily the different infusion lines.

Multicath 7 UP is available in 4 lengths: 12.5cm (code 170.072) , 16cm (code 170.172), 20cm (code 170.272), or 30cm (code 170.372).

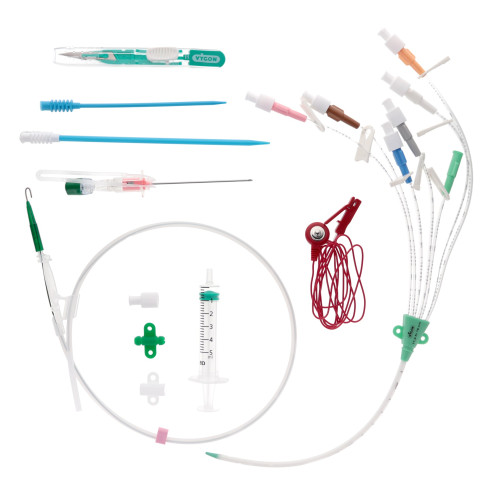

It is presented in a rigid blister pack containing:

1 polyurethane catheter (totally radiopaque) with fixation wings and centimetric graduations from 9cm from distal tip. Smooth distal end,
1 safety needle (Seldisafe) 18G, 70mm, to avoid needlestick injuries,
1 safety scalpel,
1 BLS valve (Blood Less System) on the Seldisafe to limit blood loss and blood exposure,
1 adaptor for pressure transducer,
1 Teflon-coated "J" Nitinol guidewire (particularly kink-resistant) with guide-advancer,
2 dilators (8.5Fr - L.100mm, 12Fr - L.140mm),
7 caps,
1 5ml syringe,
1 supplementary fixation wing for 16, 20, and 30cm catheters,
1 ECG cable (Combcard) for 16, 20, and 30cm catheters.

References and Features

		Catheter			Distal lumen			Medial lumen			Medial lumen 2			Medial lumen 3			Medial lumen 4			Medial lumen 5			Proximal lumen			Guidewire		Packaging
Favourites	Code	Length cm	Ø Fr	Ext. Ø mm	Flow rate ml/min	Prim. vol. ml	Ø G	Flow rate ml/min	Prim. vol. ml	Ø G	Flowrate ml/min	Prim. vol. ml	Ø G	Flowrate ml/min	Prim. vol. ml	Ø G	Flow rate ml/min	Priming volume ml	Ø G	Flow rate ml/min	Priming volume ml	Ø G	Flow rate ml/min	Prim. vol. ml	Ø G	Ø mm	Length cm	Units/Box	Units/Case
	170.072	12.5	11.5	3.9	55	0.50	16	100	0.65	14	18	0.50	18	18	0.50	18	19	0.50	18	19	0.50	18	19	0.50	18	0.88	60	5	45
	170.172	16	11.5	3.9	50	0.52	16	95	0.67	14	15	0.52	18	15	0.52	18	15	0.52	18	15	0.52	18	15	0.52	18	0.88	60	5	45
	170.272	20	11.5	3.9	45	0.62	16	90	0.75	14	12	0.55	18	12	0.55	18	13	0.55	18	13	0.55	18	13	0.55	18	0.88	60	5	45
	170.372	30	11.5	3.9	35	0.64	16	75	0.83	14	8	0.58	18	8	0.58	18	8	0.58	18	8	0.58	18	8	0.58	18	0.88	70	5	45
