Hybrid implantable ports
Seesite
Description
SEESITE venous implantable port kit with standard port, pressure injectable, high flow rate and peelable introducer (8Fr or 10Fr). Port with… Read more
Indication
SEESITE implantable ports allow repeated and prolonged access to the venous system.
SEESITE implantable ports are used to administer chemotherapy, antibiotics and antiviral drugs.
They can also be used for total parenteral nutrition (TPN), collection of blood samples and transfusion of blood or blood products.
All SEESITE references can be used for high flow injection of contrast media during CT procedures (compatible with high pressure injectors, see IFU Chapter IX/ B).
The SEESITE placement kits are composed of ancillary suitable for placement of implantable ports through echo-guided puncture (see IFU chapter VIII/ A).
Product highlights

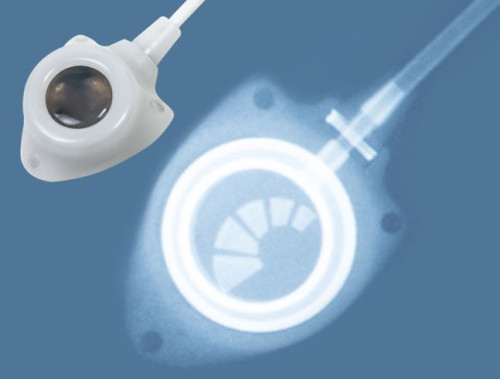

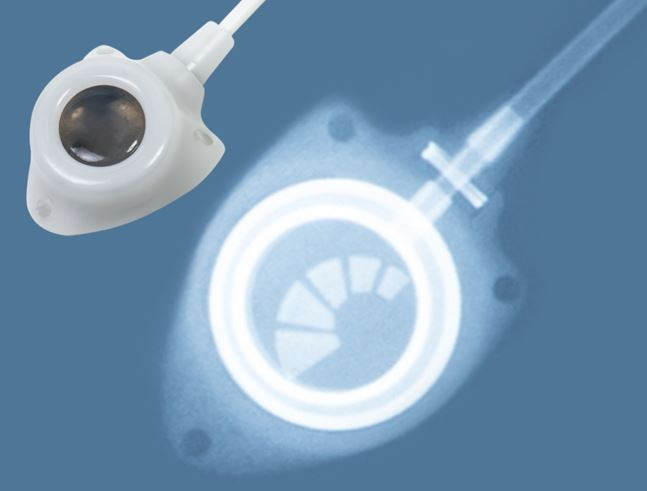

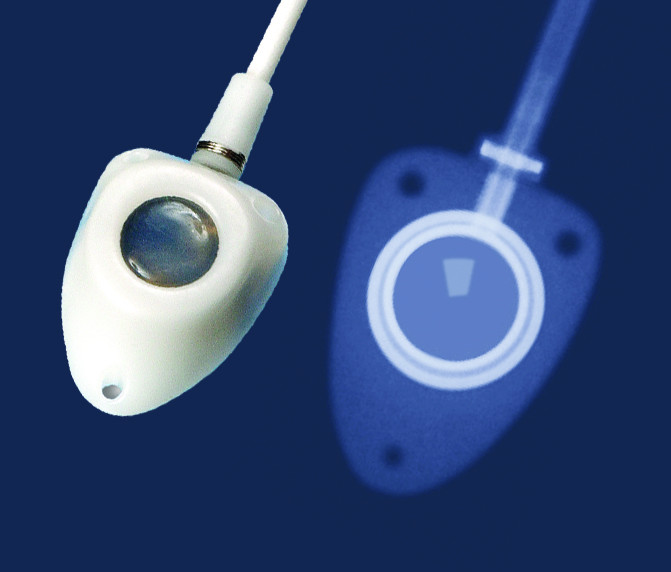

Unique RX marking

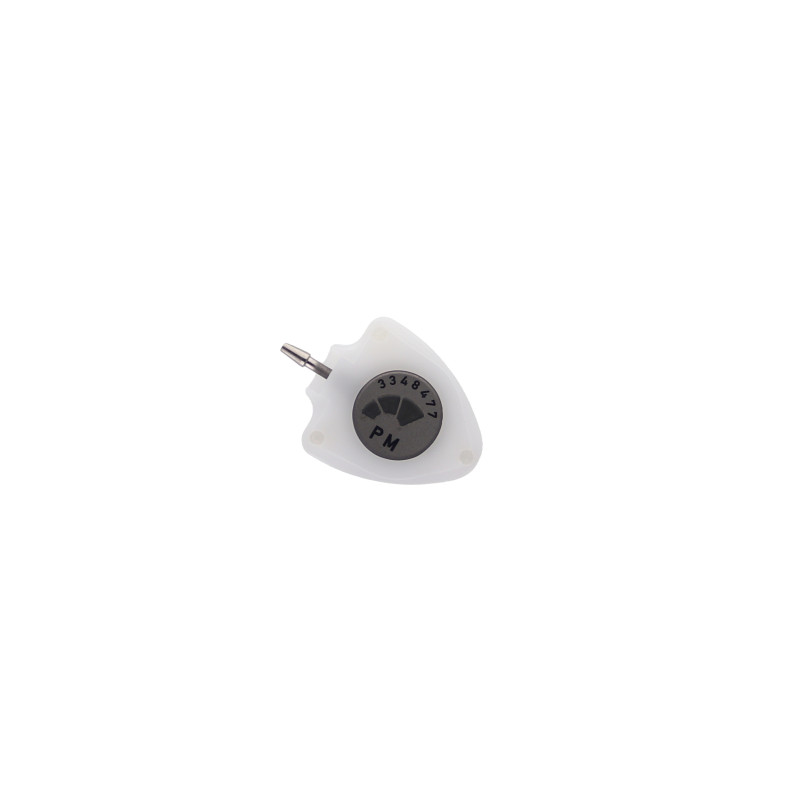

Seesite® ports have an unique radiopaque marking. This makes it easy to identify the maximum injection rate. Moreover, the radiopaque marking allows to check that the chamber is in the correct position, and to detect easily any flipped. Seesite® implantable ports are compatible with high-pressure injection of contrast media for CT and MRI examinations up to flowrate 5 ml/s and maximum pressure 325 psi.

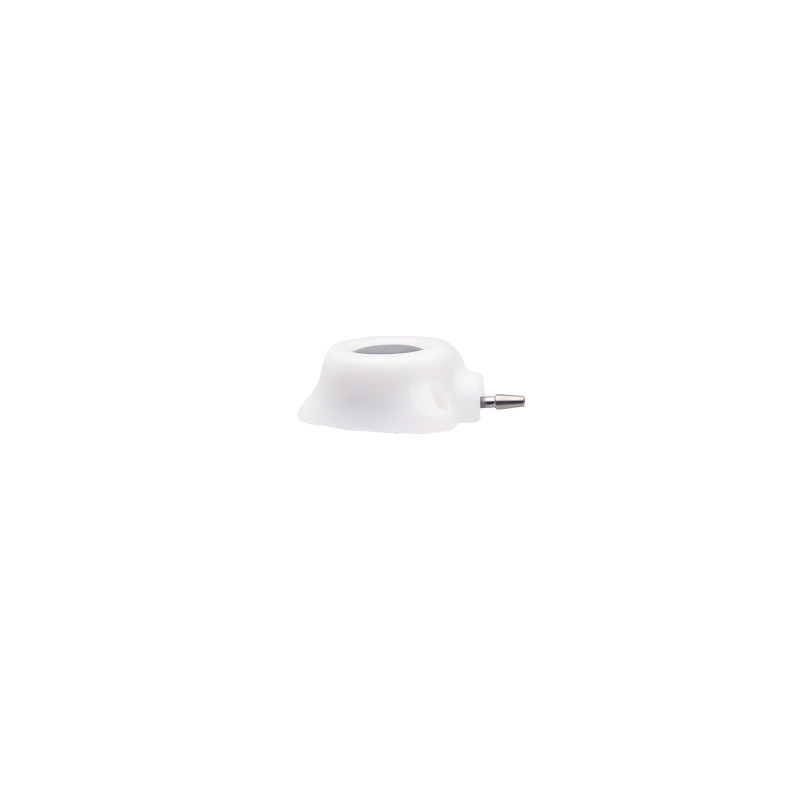

Light and safe

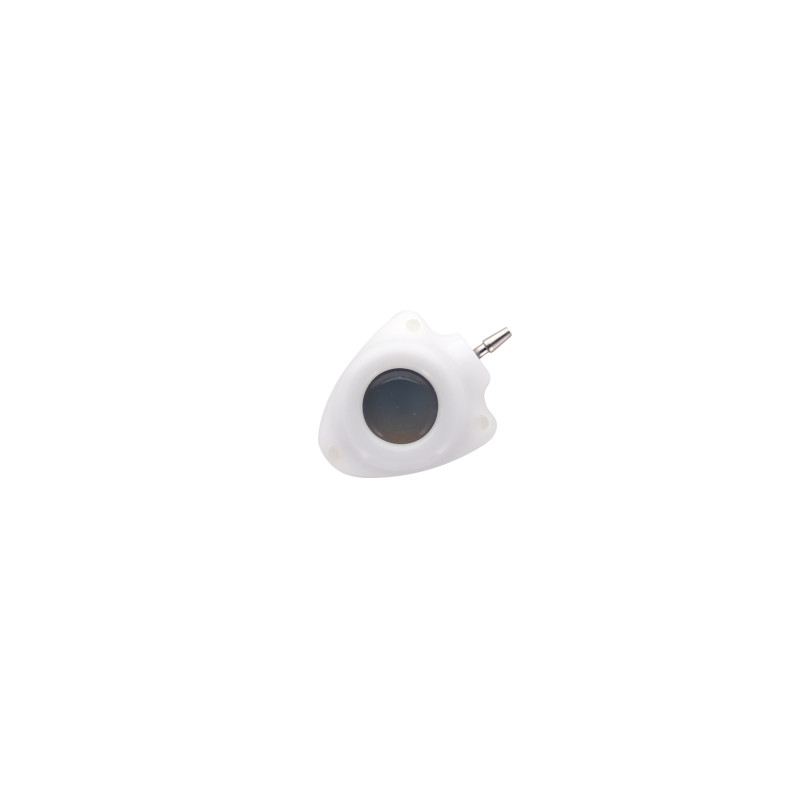

Like Polysite®, Seesite® consists of a titanium reservoir and a polyoxymethylene (POM) outer casing, making Seesite® a lightweight implantable chamber.
Moreover, Seesite® has smooth angles and his profile-shaped design requiring only a small surgical pocket.
Adaptability

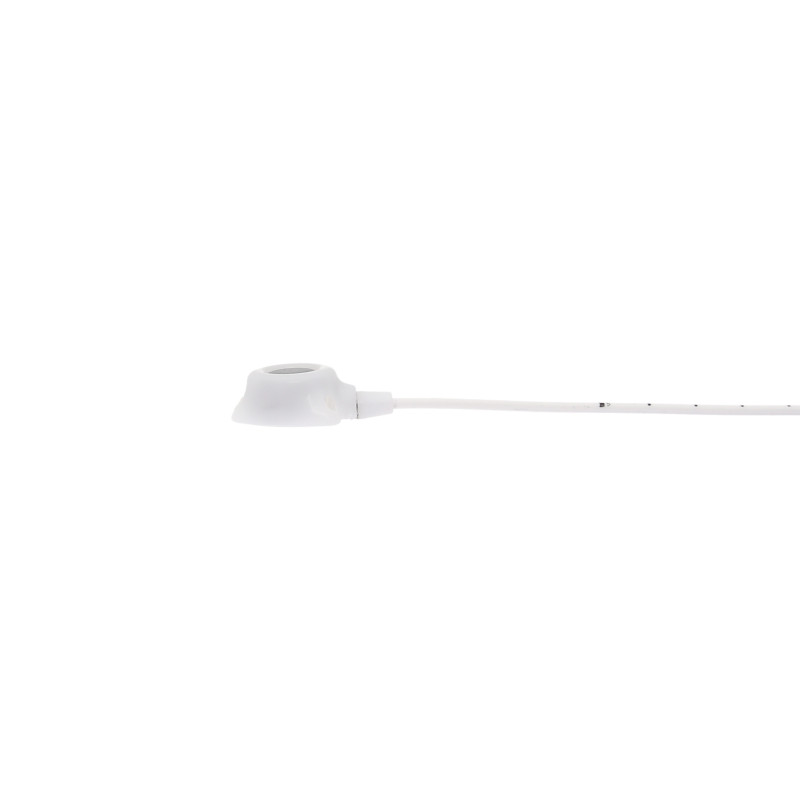

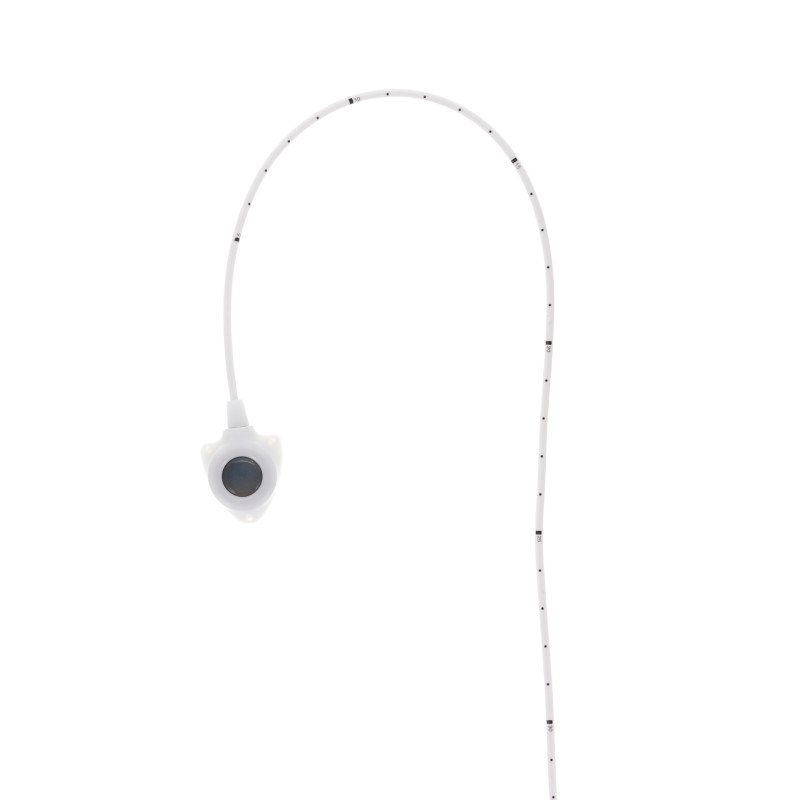

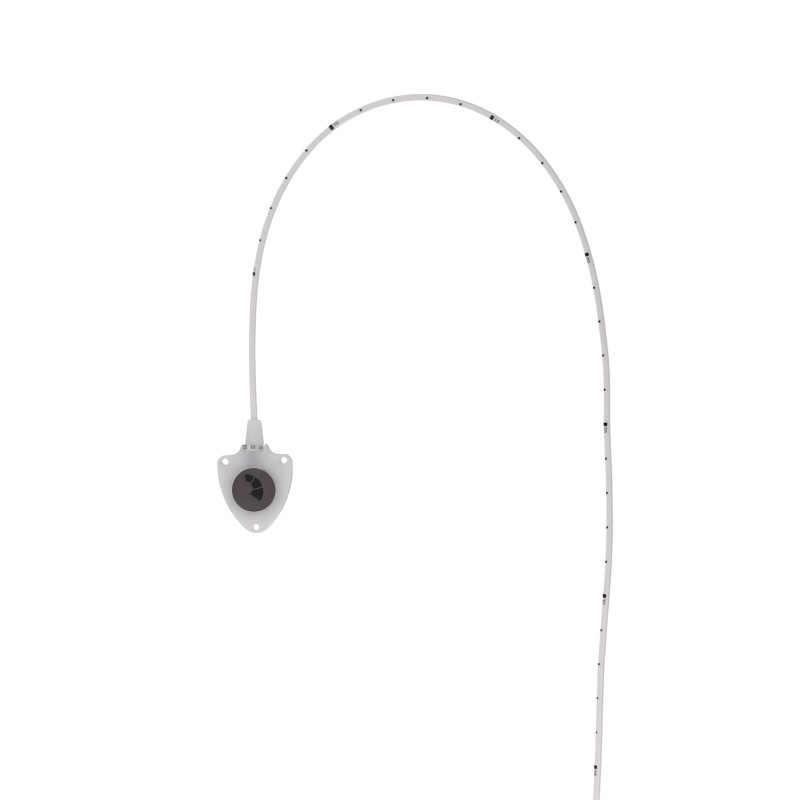

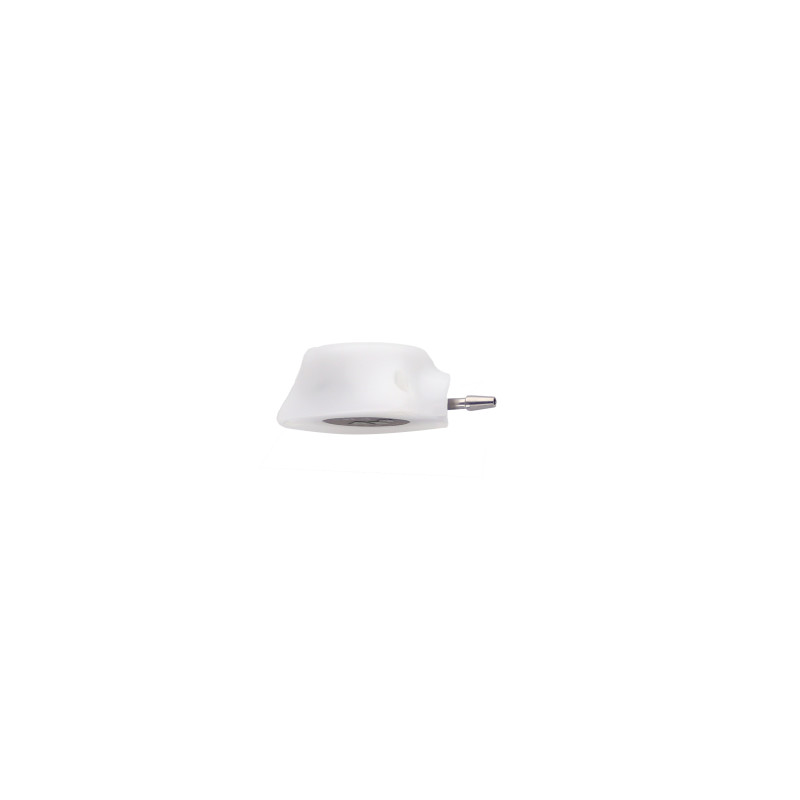

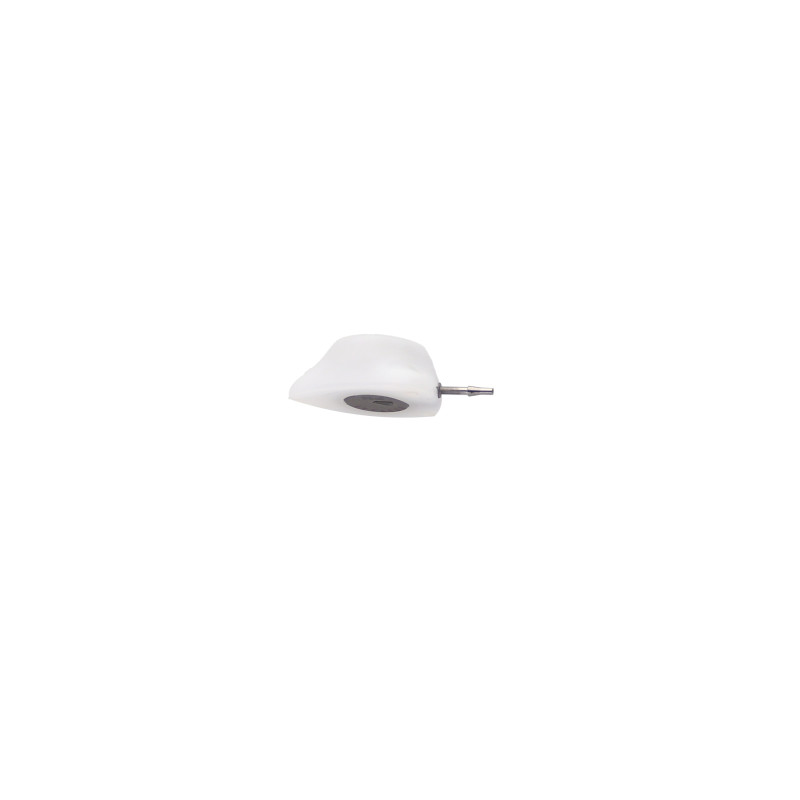

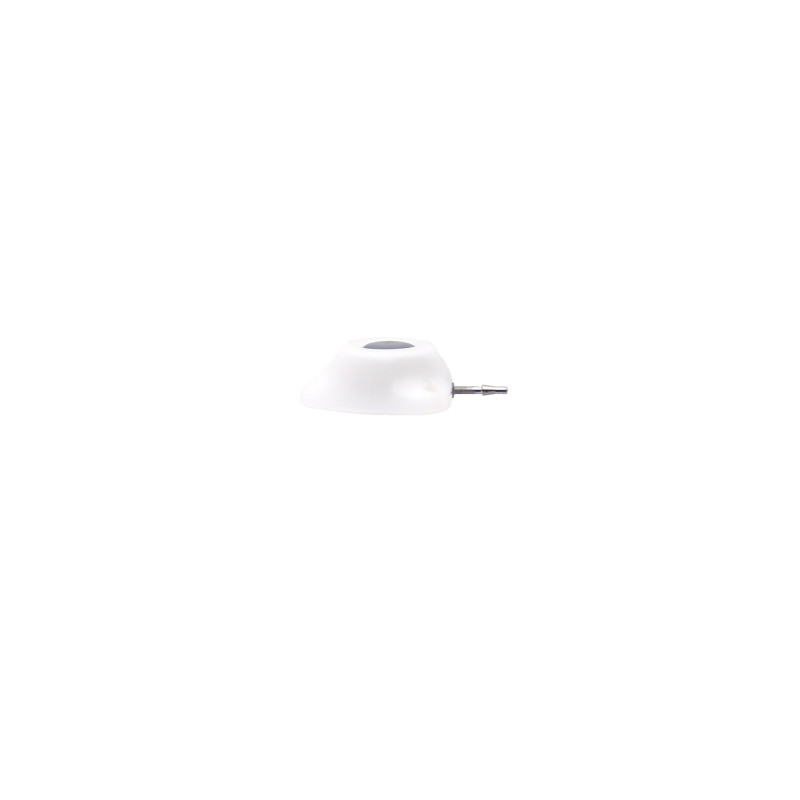

To adapt to the anatomy of all patients, from paediatric to adult, Seesite® is available in 3 different sizes: micro, mini and standard. Ports pre-connected or to be connected. Catheter diameters range from 5F to 10F and different lengths are available (from 60 to 80 cm). Catheters available in polyurethane or silicone.
The Seesite® range is also designed to suit the needs of every user, with different kits available: surgical and percutaneous with ultrasound-guided puncture.
The implantable ports Seesite® is a Class III sterile medical device. Certification established by GMED notified body no. 0459.
They allow repeated and prolonged access to the venous system.
Read the instructions for use carefully.
Device manufactured by PEROUSE MEDICAL and distributed by VYGON.
Description
SEESITE venous implantable port kit with standard port, pressure injectable, high flow rate and peelable introducer (8Fr or 10Fr).Port with catheter to connect in silicone (codes VPE4008SEE and VPE40010SEE) or in polyurethane (code VPE4018SEE).
Each SEESITE placement kit contains:
1) A pouch containing:
- One titanium and POM (polyoxymethylene) Standard port with a silicone septum, silicone septum, silicone filled suture holes and radiopaque marking,
- One XRO silicone or polyurethane catheter. Graduation every cm with a numbered marking every 5cm from 5 to 40cm,
- Two connection rings with a Phynox thread containing nickel,
- One straight Huber needle (22G),
- One PPS CT safety Huber needle with connecting line, compatible with contrast media injection during scan procedures – 20G – 20mm,
- One vein pick,
- One flushing connector, pre-connected to the catheter,
- One introducer with peelable sheath,
- One metallic guidewire “J” type graduated every 10cm with J straightener (0.035’’ – 60 cm),
- One echogenic introducer needle, 70mm usable length – 18G,
- One tunneler Ø 2.5mm – Length: 23cm,
- One 10ml syringe,
- One Raulerson metallic guidewire introducer.
2) A CIV-FLEX Echoset containing:
- One latex-free echo-guidance probe sheath,
- One sterile ultrasound gel pouch,
- Two supporting elastic straps for the protective cover,
- One sterile drape.
References and Features
| Implantable port | Catheter | Introducer | Packaging | |||||
|---|---|---|---|---|---|---|---|---|
| Favourites | Code | Prim. vol. ml | Ext. Ø mm | Material | Connection | Diameter Fr | Units/Box | Units/Case |
| 2005SEE | 0.2 | 0.65 x 1.65 | Silicone | To connect | 5 | 1 | 1 | |
| 3007SEE | 0.4 | 1.2 x 2.16 | Silicone | To connect | 7 | 1 | 1 | |
| 3008SEE | 0.4 | 1.2 x 2.4 | Silicone | To connect | 8 | 1 | 1 | |
| 3017SEE | 0.4 | 1.4 x 2.1 | Polyurethane | To connect | 7 | 1 | 1 | |
| 40010SEE | 0.6 | 1.57 x 3.18 | Silicone | To connect | 10 | 1 | 1 | |
| 4008SEE | 0.6 | 1.2 x 2.4 | Silicone | To connect | 8 | 1 | 1 | |
| 4018SEE | 0.6 | 1.7 x 2.65 | Polyurethane | To connect | 8 | 1 | 1 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free Yes
Documentation
-
Brochure Vascular Access Range
-
Instructions for use
